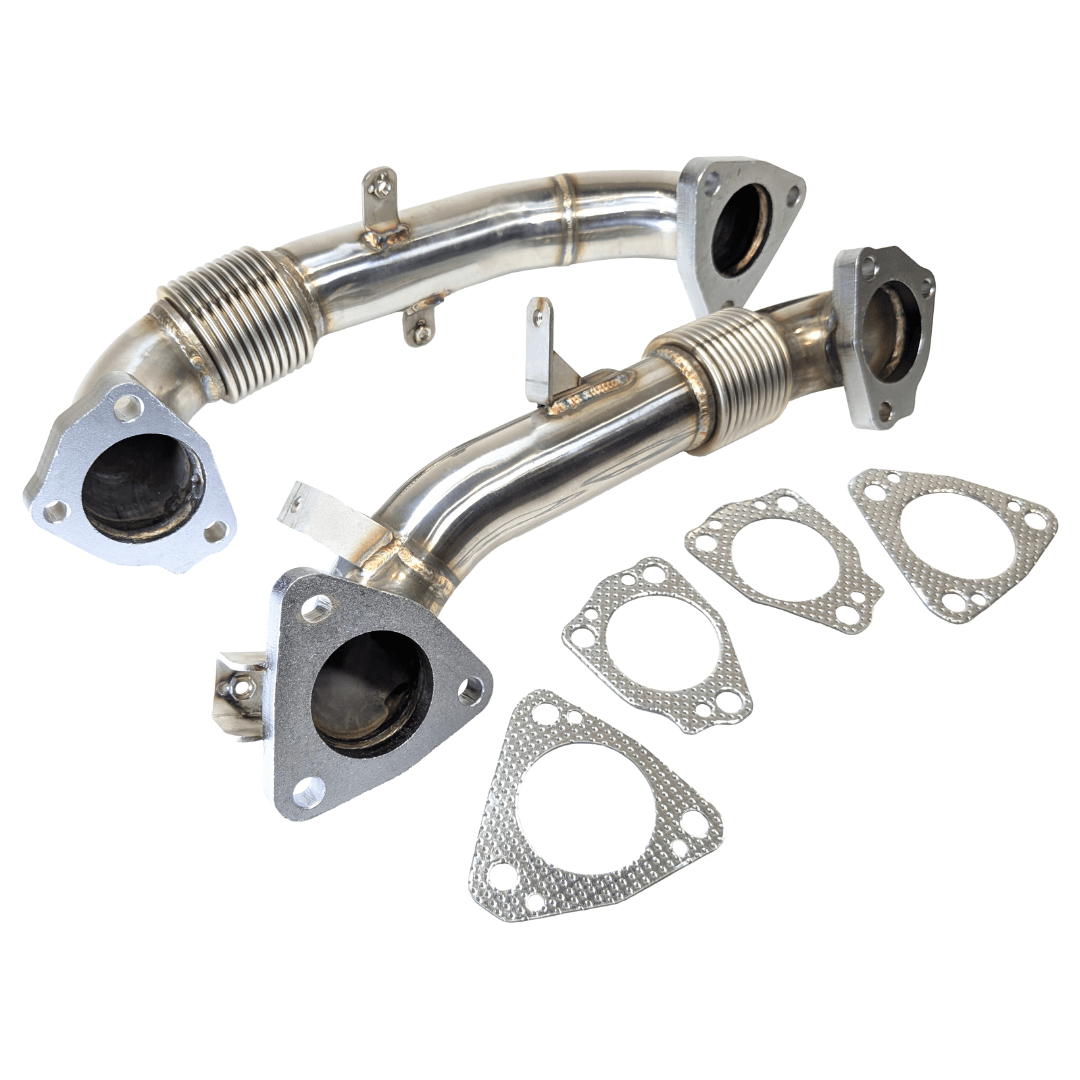

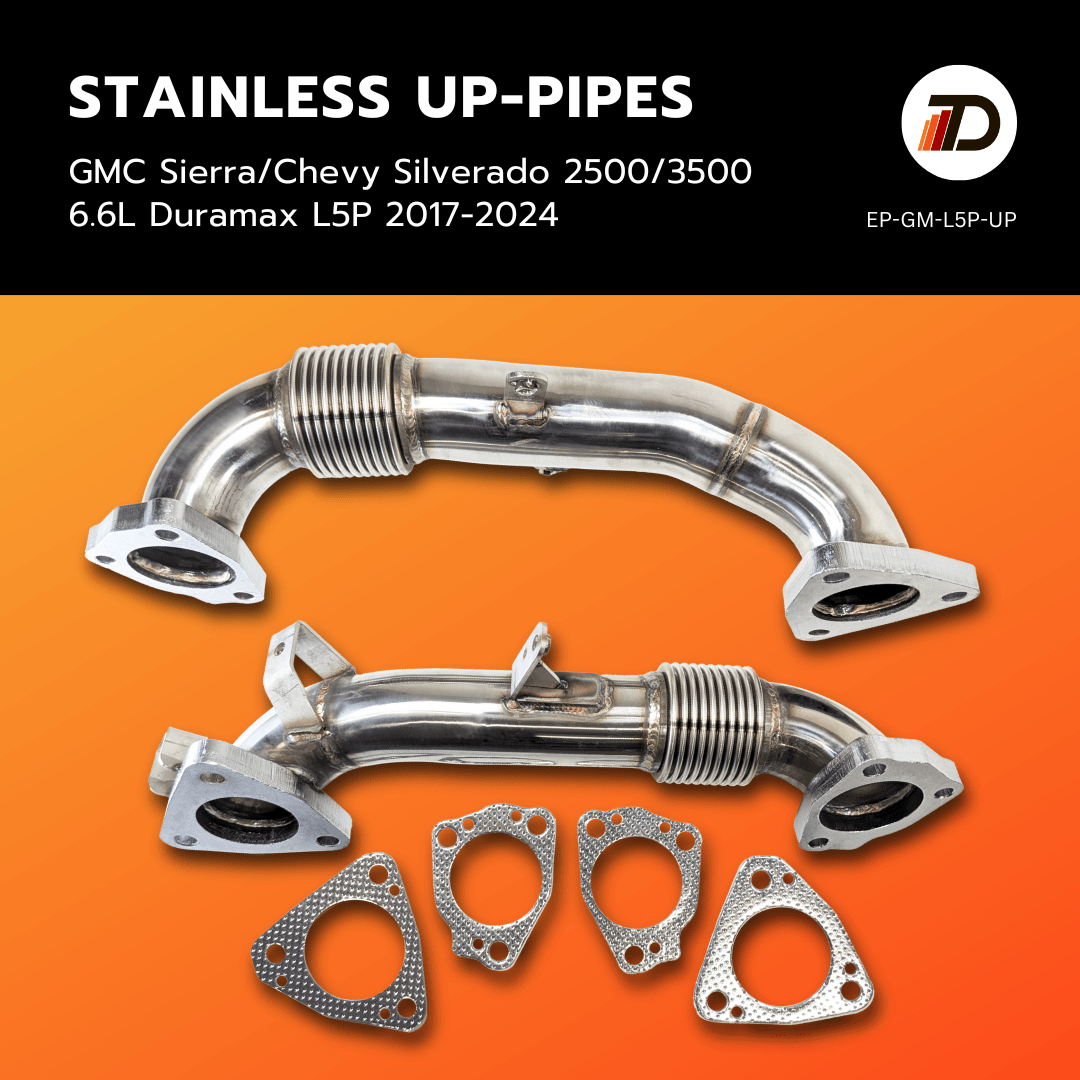

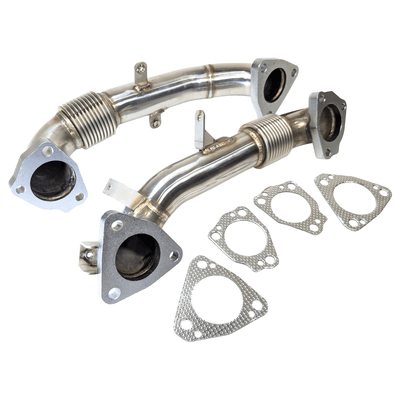

The L5P high-flow up-pipes are a direct replacement for the restrictive factory units, designed to increase exhaust flow and reduce back pressure on 2017-2024 6.6L Duramax engines. Built from heavy-gauge stainless steel with a larger internal diameter, they support improved exhaust velocity and lower EGTs while retaining emissions-compliant operation.
Compatibility
Years: 2017-2024
Makes: Chevrolet, GMC
Models: Silverado 2500HD / 3500HD, Sierra 2500HD / 3500HD
Engine: 6.6L Duramax L5P Diesel
Body: L5P Pickup/Cab & Chassis. Does not fit L5D
Technical Specifications
Specification
Detail
Material
11-gauge 304 stainless steel
Flow Increase
46% larger flow area vs OEM
Bellows Type
Internally-sleeved 304 stainless steel
Gaskets Included
301 stainless steel gaskets
Fitment Type
OEM-length direct replacement

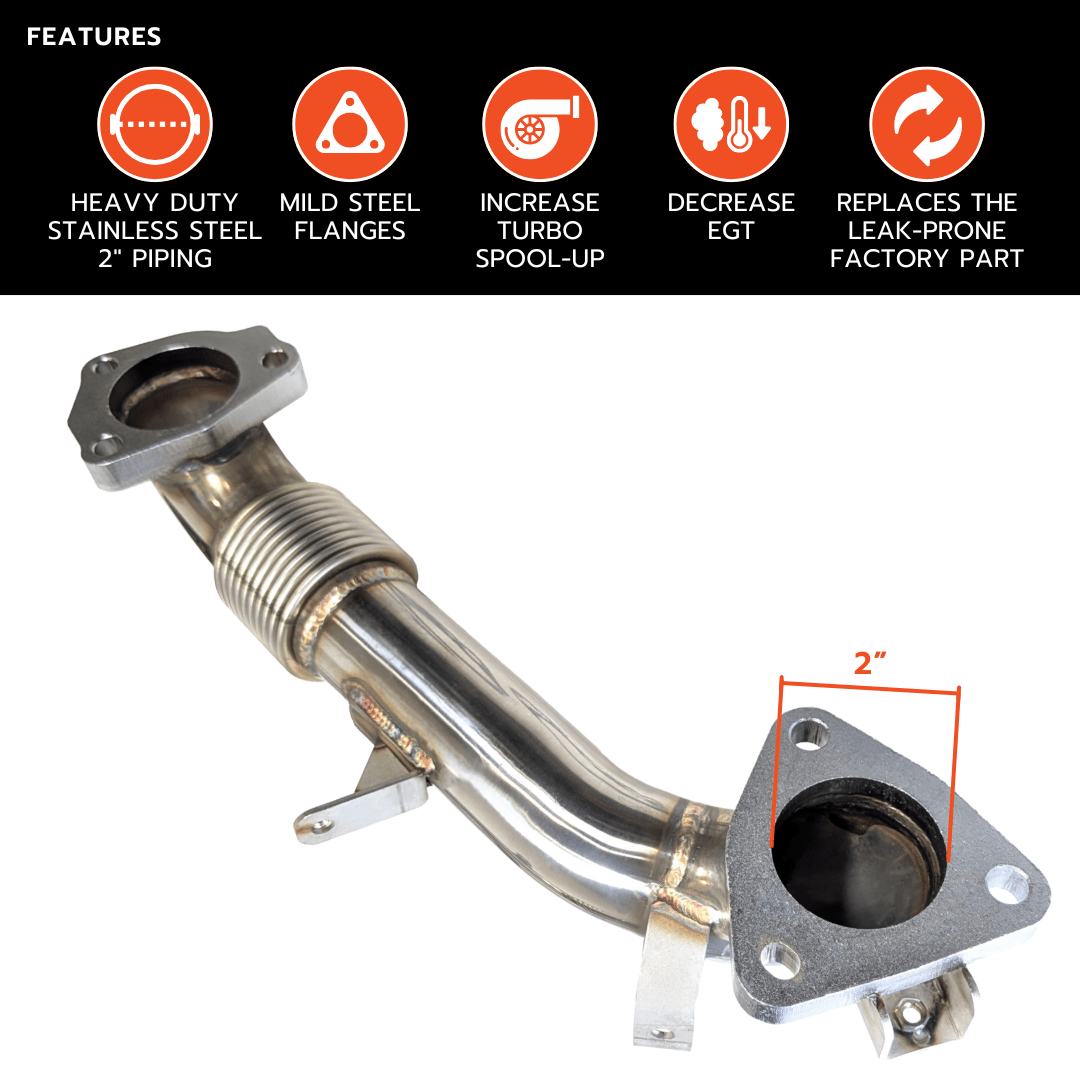

Key Features & Build Details
46% Increased Flow Area - Larger internal diameter reduces restriction compared to factory up-pipes, improving exhaust gas movement.
11-Gauge 304 Stainless Construction - Thick-wall stainless steel resists cracking, corrosion and heat fatigue under sustained load.
Internally-Sleeved Bellows - Reinforced bellows design adds durability by preventing over-expansion and premature failure common in OEM designs.
OEM-Length Design - Maintains factory routing and fitment for a true bolt-on installation without modification.
Stainless Steel Gaskets Included - 301 stainless gaskets provide reliable sealing under high heat and pressure conditions.
Performance Benefits
Reduces Exhaust Backpressure - Increased flow area allows exhaust gases to exit more efficiently, improving overall engine breathing.
Helps Lower EGTs - Improved exhaust flow reduces heat buildup under load, beneficial for towing and tuned applications.
Improves Turbo Efficiency - Smoother exhaust delivery to the turbo supports more consistent spool and response.
Maintains Emissions Compliance - Designed to work with factory emissions systems without triggering issues.
Increases System Durability - Heavy-duty materials and reinforced bellows reduce the risk of failure over time.
Installation Notes
Direct bolt-on replacement using factory mounting points. Installation requires removal of factory up-pipes and access to the turbo area; professional installation recommended due to tight engine bay clearances.
Frequently Asked Questions
Do these up-pipes fit stock L5P turbo setups?
Yes. These are OEM-length replacements designed to fit factory turbo and exhaust manifold connections.
Will these up-pipes trigger any check engine lights?
No. They are designed to maintain compatibility with factory emissions systems and sensors.
How do these compare to factory up-pipes?
They offer a 46% increase in flow area along with stronger materials and reinforced bellows, addressing common OEM restriction and durability issues.
Are gaskets included with the kit?
Yes. The kit includes 301 stainless steel gaskets for proper sealing during installation.
Are these suitable for tuned or high-load applications?
Yes. The increased flow and heat-resistant construction are designed to handle higher exhaust temperatures and pressures.
