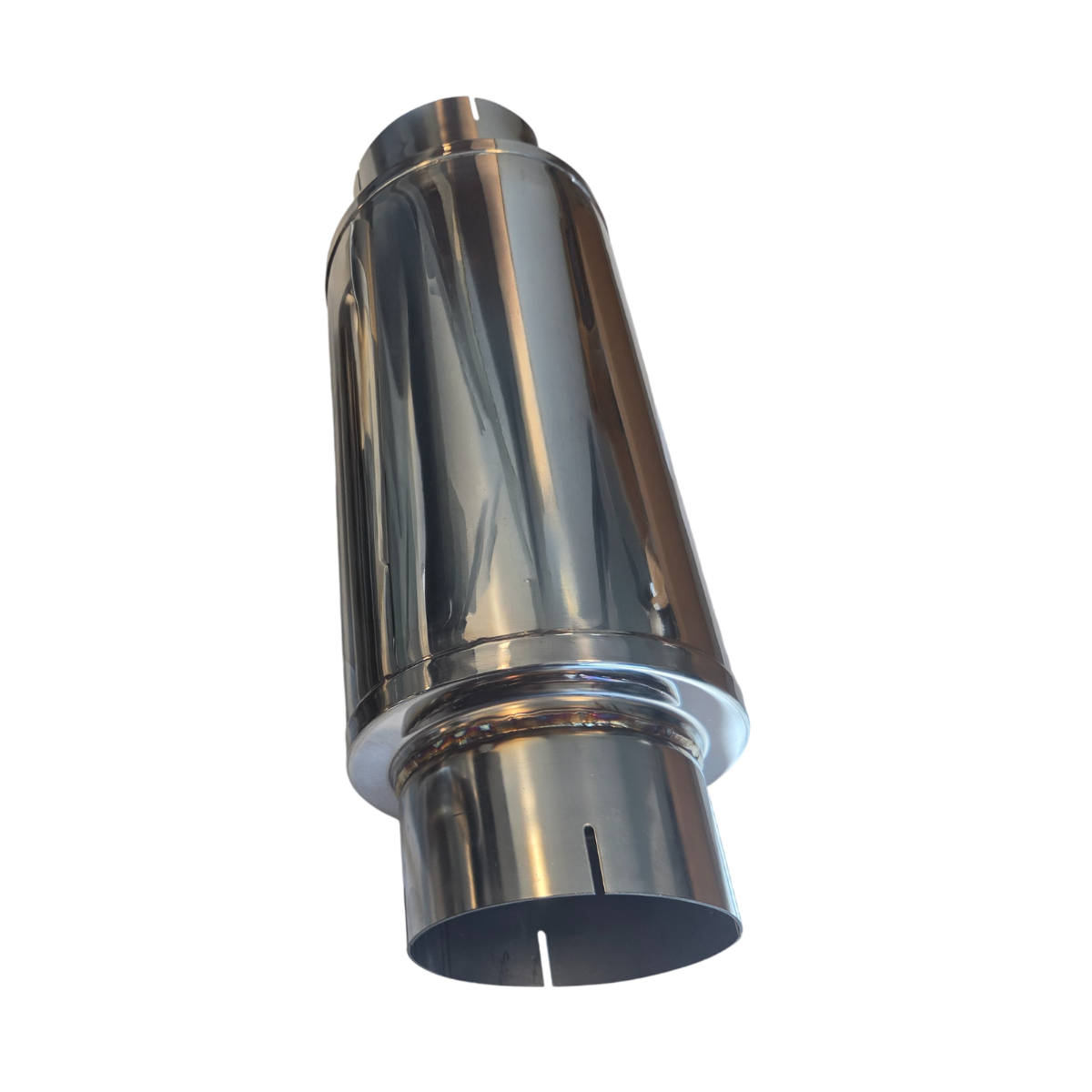

Stainless Steel Diesel Muffler in 4-Inch and 5-Inch Sizes
This stainless steel diesel muffler is a straight-through performance muffler for diesel trucks. It reduces back pressure and gives your truck a deep, throaty exhaust note. Choose a 4-inch diesel muffler or 5-inch diesel muffler to match your exhaust, then pick 304 or 409 stainless steel. It fits Cummins, Duramax, and Powerstroke trucks and pairs with our complete diesel straight exhaust systems.
Key Specs at a Glance

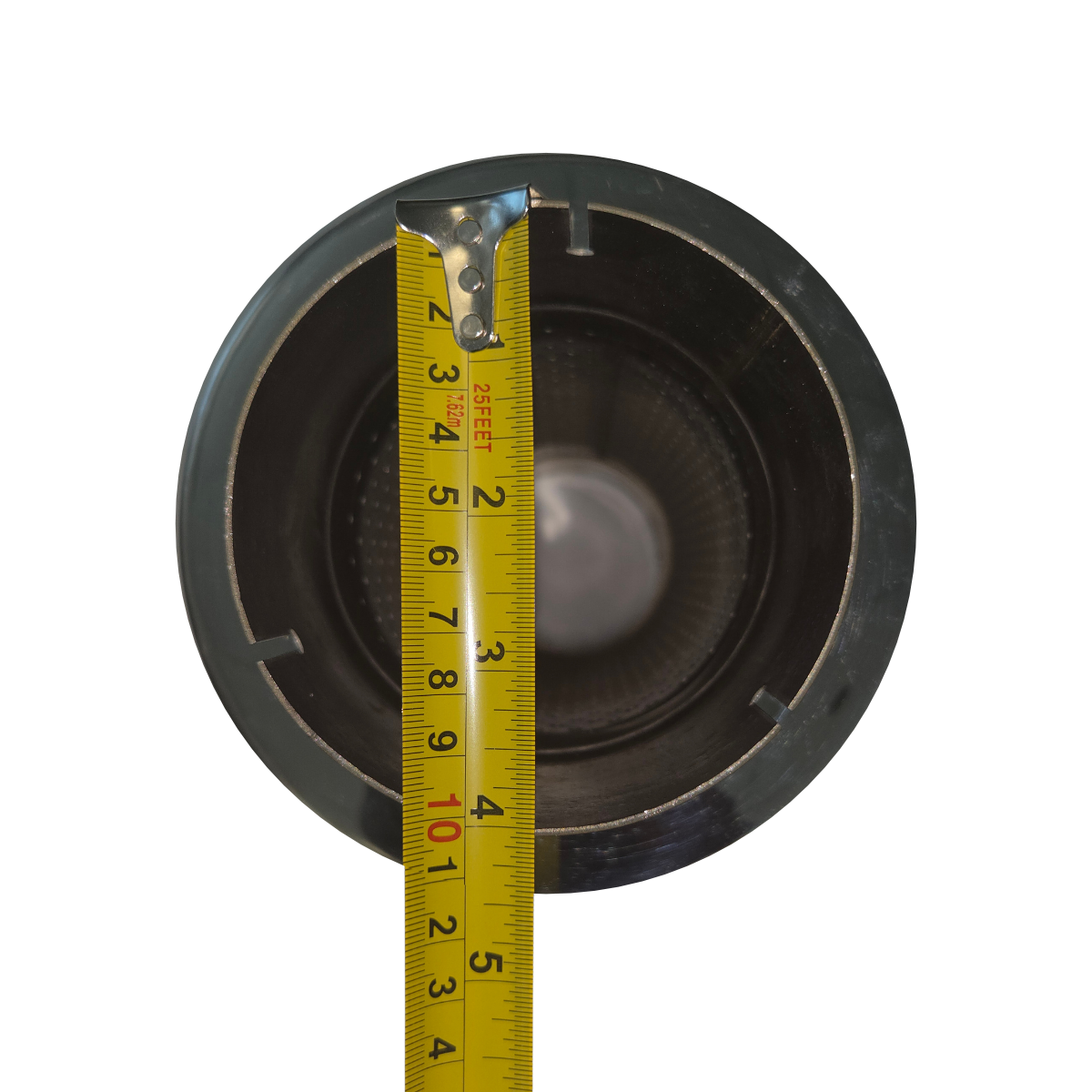

Sizes: 4-inch or 5-inch inlet and outlet (inner diameter)
Fitment: Cummins, Duramax, and Powerstroke diesel trucks, classic and late model
Hardware: Not included (weld-in or customer-supplied clamps)
How to Choose Your Diesel Muffler Size and Material
This diesel truck muffler comes in four combinations, so you can match your exhaust pipe and choose the steel grade that suits your climate and budget.
Step 1: Choose Your Muffler Size
4-Inch: For trucks with a 4-inch exhaust system
5-Inch: For trucks with a 5-inch exhaust system
Match the muffler to your existing exhaust pipe diameter for the cleanest fit and consistent flow.
Step 2: Choose Your Exhaust Quality

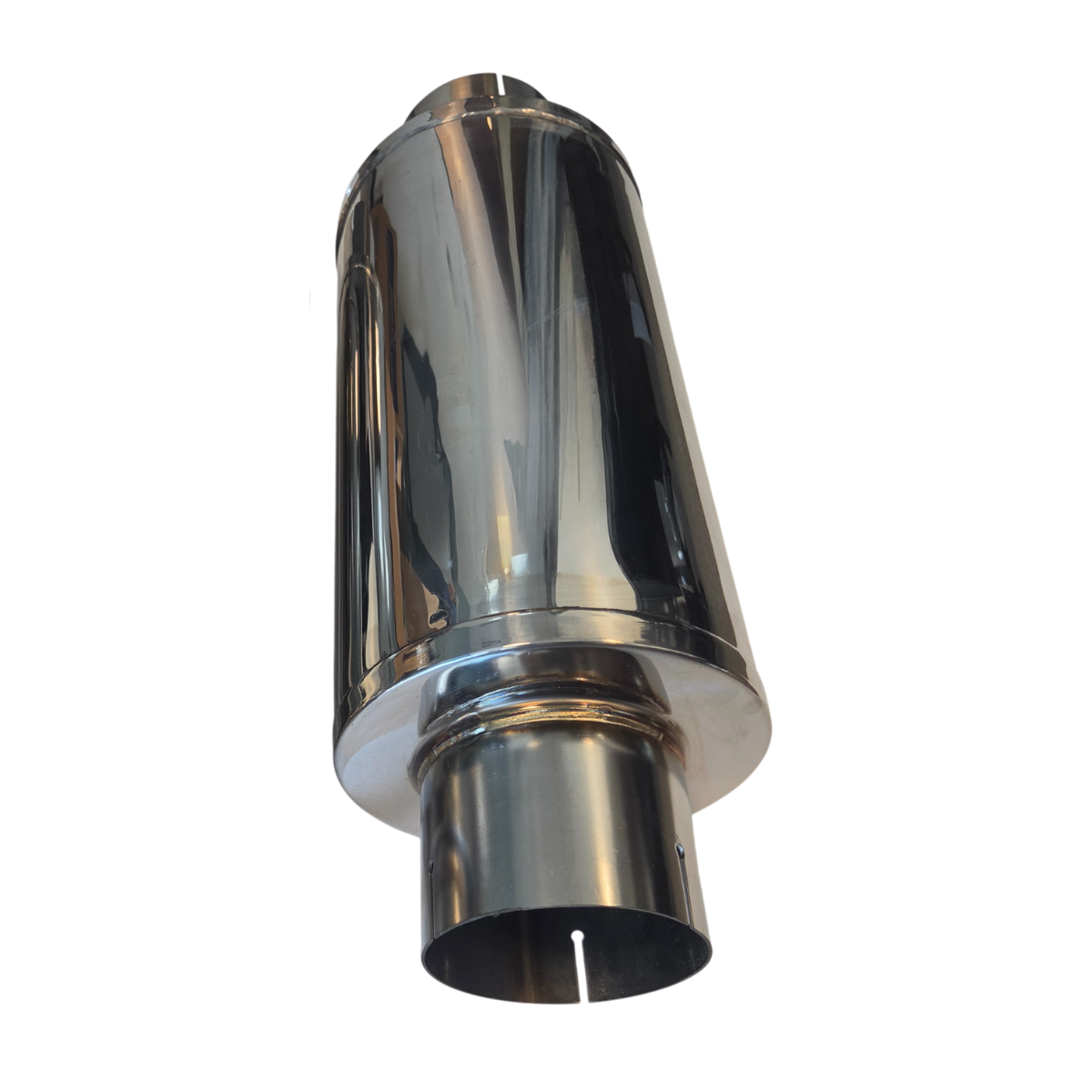

304 Stainless Steel: Premium corrosion resistance that keeps its finish longer
Both grades share the same straight-through design and dimensions.

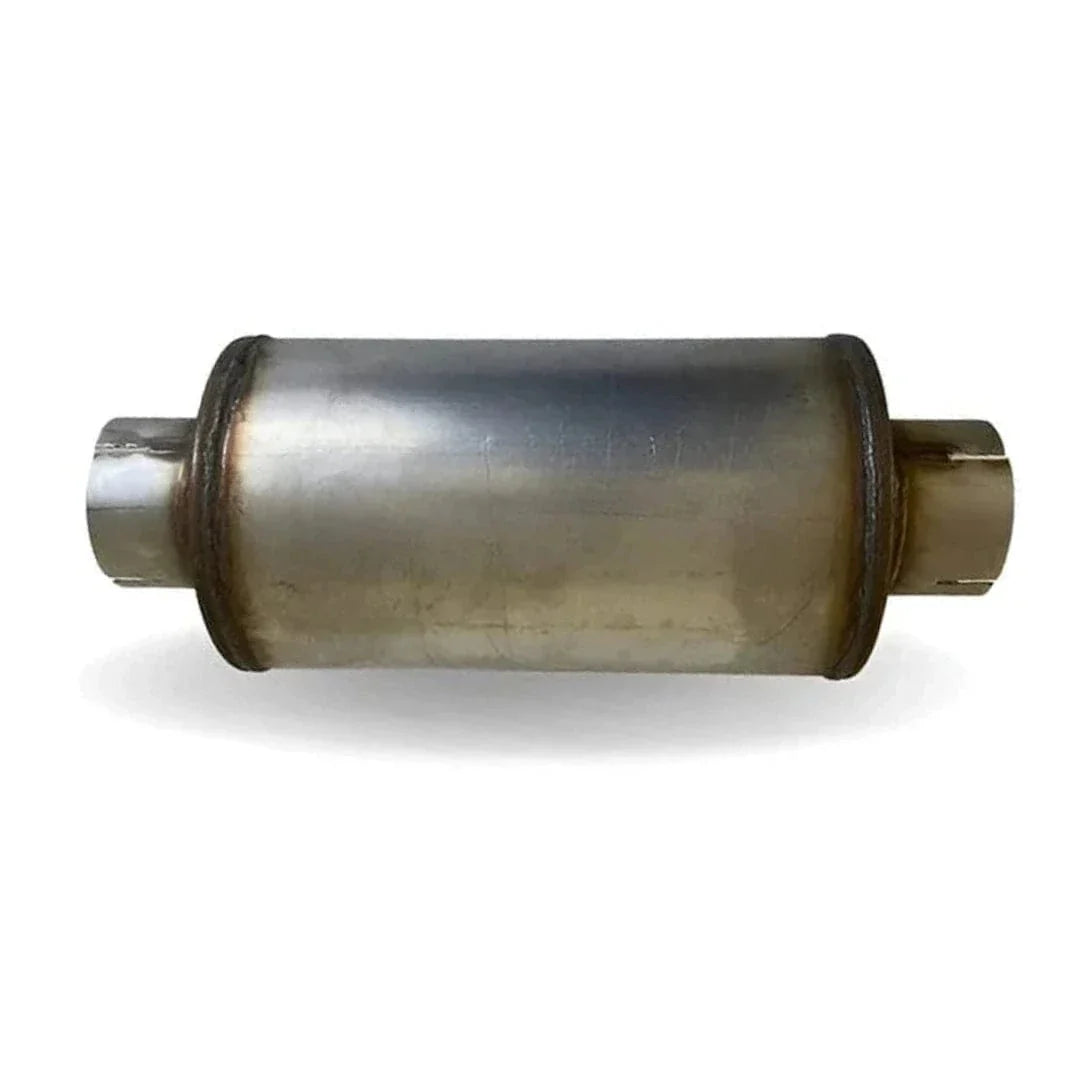

304 vs 409 Stainless Steel Exhaust Comparison
Feature
304 Stainless Steel
409 Stainless Steel
Corrosion Resistance
Higher (more chromium plus nickel)
Good (lower chromium, no nickel)
Appearance Over Time
Keeps its finish longer
May develop surface discoloration
Price
Premium
More economical
Best For
Road salt, wet climates, visible installs
Value-focused builds and drier climates
What Does a Muffler Do on a Diesel Engine?
A muffler on a diesel engine controls exhaust noise and shapes the sound of your truck. Factory mufflers use chambers and baffles that can add back pressure. A straight-through diesel muffler uses a perforated core instead, so exhaust gas flows freely while internal mesh and fiberglass packing absorb unwanted resonance.
The result is a diesel exhaust muffler that helps your truck breathe easier and sound richer, without the harsh drone of a straight pipe.

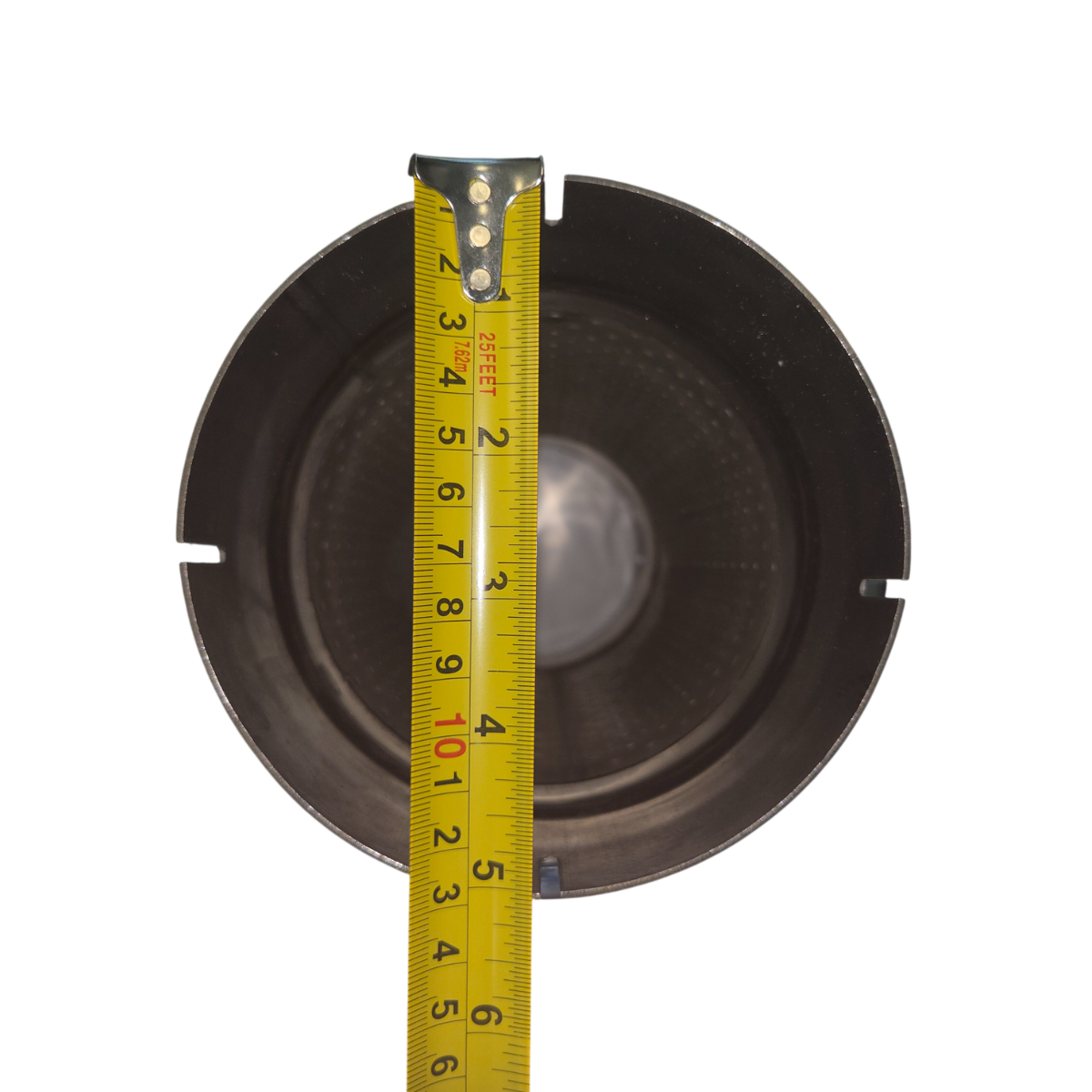

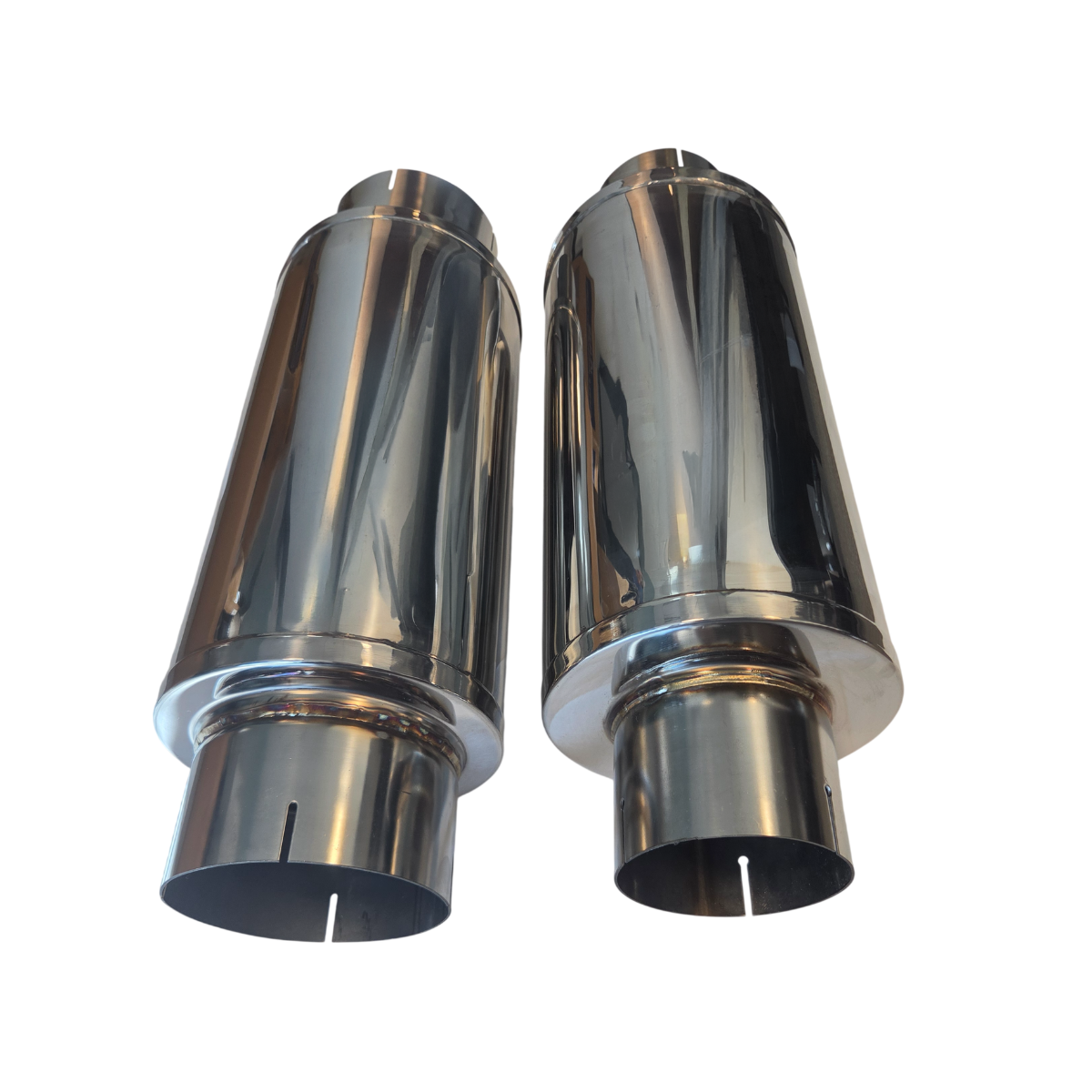

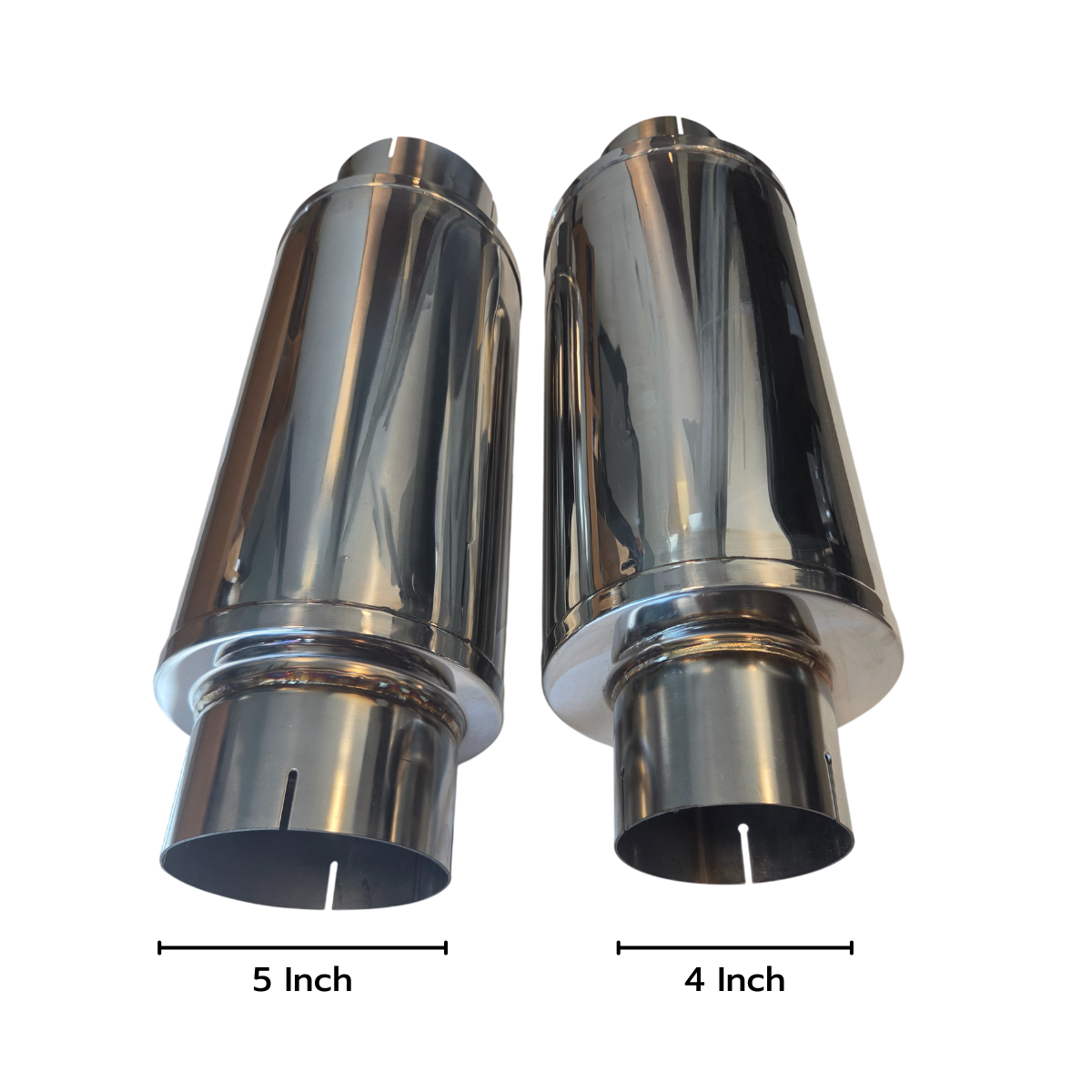

4-Inch vs 5-Inch Diesel Muffler Specifications
Specification
4-Inch Diesel Muffler
5-Inch Diesel Muffler
Inlet Size
4-inch inner diameter
5-inch inner diameter
Outlet Size
4-inch inner diameter
5-inch inner diameter

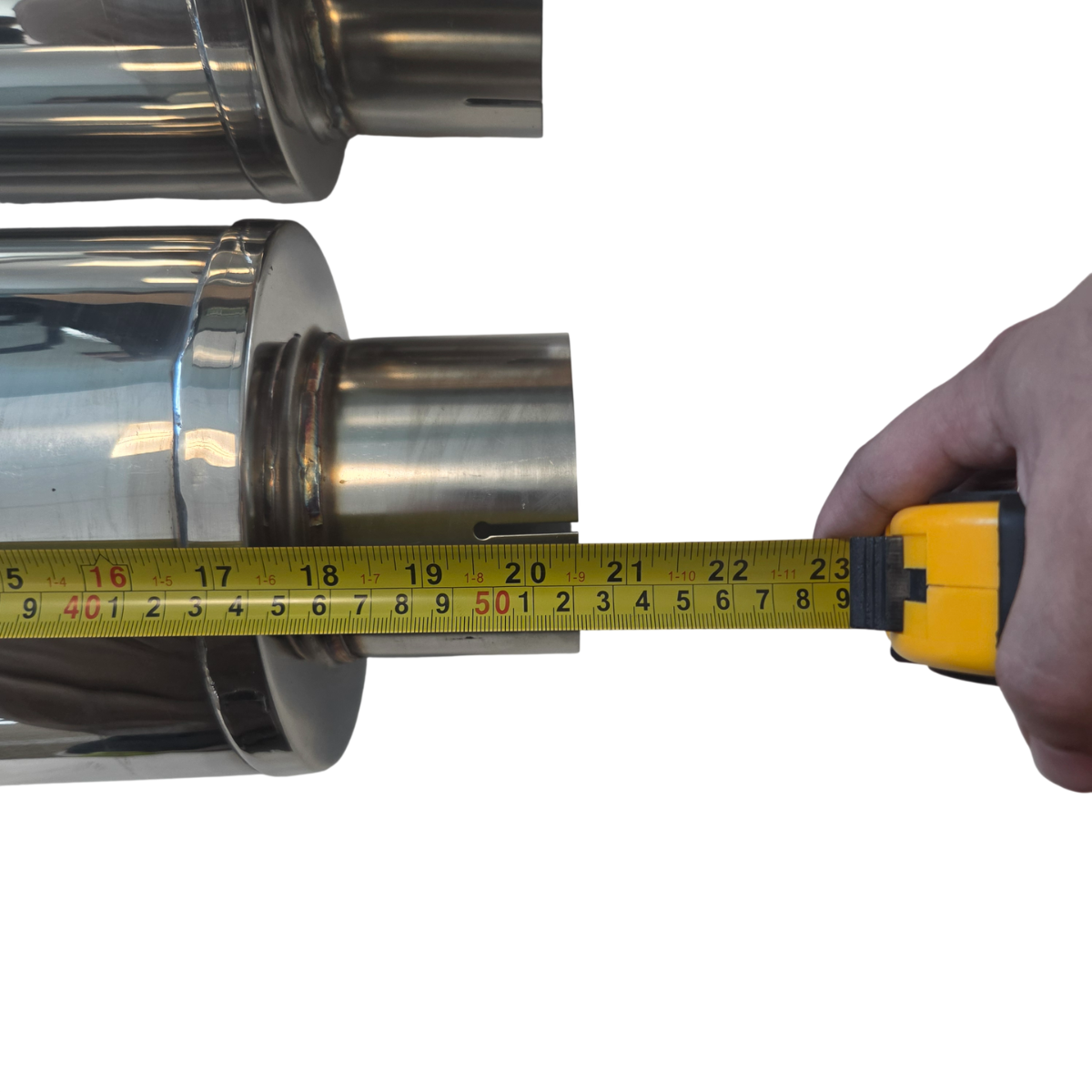

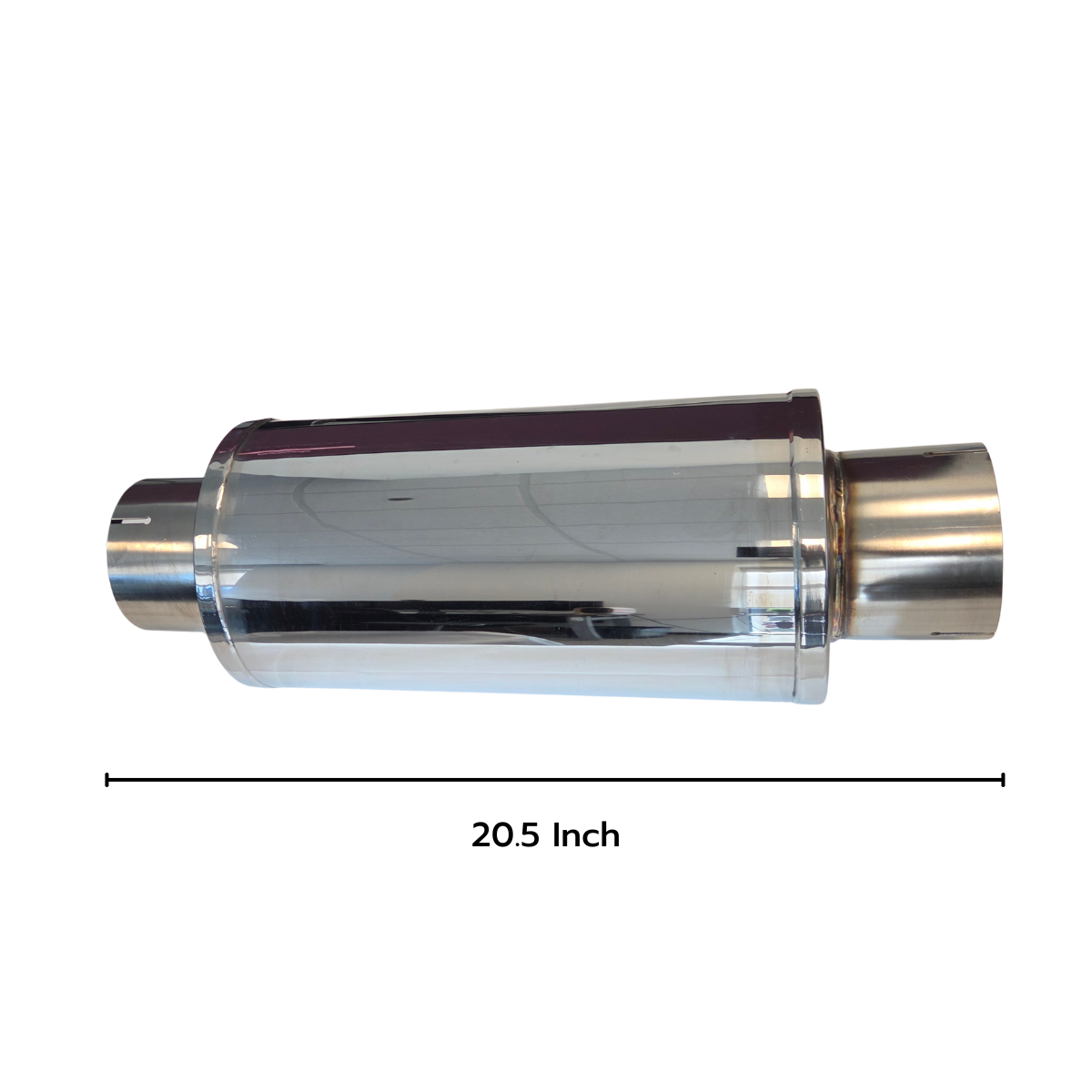

Overall Length
20.5 inches
20.5 inches
Material Options
304 or 409 stainless steel
304 or 409 stainless steel
Flow Design
Straight-through, non-directional
Straight-through, non-directional
Performance Diesel Muffler Features
Every feature is designed to improve airflow and sound quality:

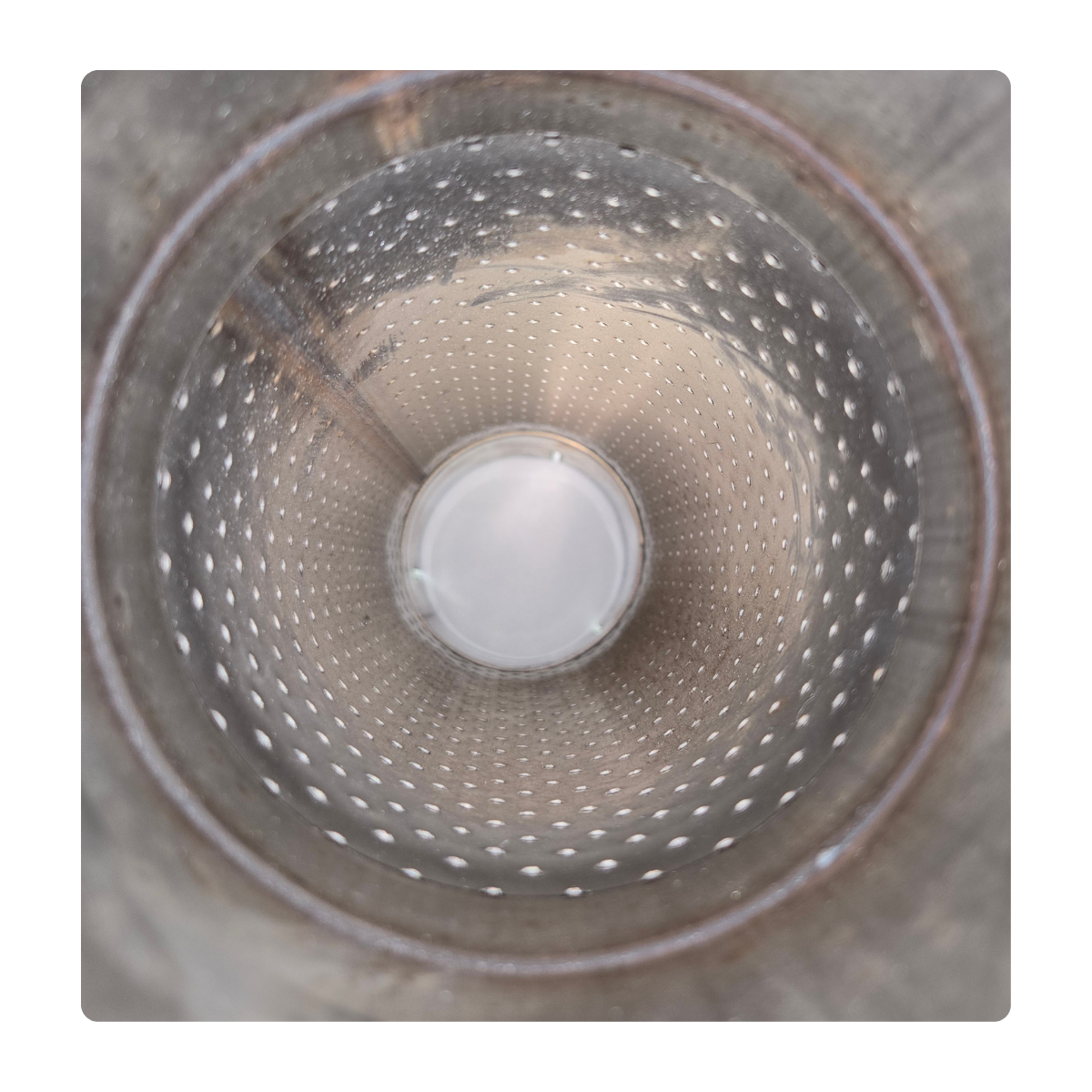

Straight-through flow path: Maximizes performance by reducing back pressure.
Non-directional design: Installs in either direction for added flexibility.
Stainless steel construction: 304 or 409 stainless steel built for durability in harsh conditions.
Internal mesh and fiberglass: Absorbs interior resonance for a richer, deeper exhaust note.
Diesel Truck Fitment: Cummins, Duramax and Powerstroke
This multi-fitment diesel truck muffler fits a wide range of diesel vehicles, including Cummins, Duramax, and Powerstroke trucks. It works on both classic and late-model diesel trucks, as long as the inlet and outlet size matches your exhaust. Use the vehicle selector on this page to confirm fitment.
Installation is seamless with Black Bandit Exhaust Systems, which come with pre-bent and pre-welded hangers.
Important: Select the correct size for your vehicle, whether you need a 4-inch diesel muffler or a 5-inch muffler for diesel, and check compatibility with your exhaust system to ensure the best fit and performance.
Diesel Muffler vs Straight Pipe vs Resonator
A straight-through muffler sits between a full straight pipe and a stock exhaust. It keeps strong flow while controlling drone.
Option
Sound
Flow
Best For
Straight-Through Performance Muffler
Deep, throaty tone with reduced resonance
Low back pressure
Performance with a controlled, aggressive sound
Straight Pipe / Muffler Delete
Loudest, often with cabin drone
Unrestricted
Maximum volume where local laws allow it
Resonator Only
Targets specific drone frequencies
Low restriction
Fine-tuning tone alongside a muffler
Build Your Diesel Exhaust Kit
Get a complete, high-flow diesel exhaust in one order. Start with this muffler and add matching components in our kit builder:
The muffler is non-directional, so it can be installed in either direction. It is designed to directly replace a muffler-delete pipe of the same diameter.
Note: Mufflers do not come with any hardware. You may need to weld it in or provide your own clamps if your exhaust system doesn't have the appropriate muffler-delete pipe to directly replace with the muffler.
Diesel Muffler FAQ
Does a diesel truck need a muffler?
A muffler controls exhaust noise and helps keep a diesel truck within acceptable sound levels. Many states and provinces have vehicle noise and exhaust equipment rules, so check your local regulations. A straight-through performance muffler keeps strong exhaust flow while still controlling harsh noise and drone.
Should I get a 4-inch or 5-inch diesel muffler?
Match the muffler to your exhaust pipe diameter. A 4-inch exhaust system takes the 4-inch diesel muffler, and a 5-inch system takes the 5-inch diesel muffler. Both are 20.5 inches long overall body.
Is 304 or 409 stainless steel better for a diesel muffler?
304 stainless steel is better for road salt, wet weather, or keeping a clean finish longer. 409 stainless steel is a durable, more economical exhaust-grade option. Both versions share the same straight-through design and dimensions.
Will this muffler fit my Cummins, Duramax or Powerstroke?
Yes. The muffler fits Cummins, Duramax, and Powerstroke diesel trucks, both classic and late model, as long as the inlet and outlet size matches your exhaust system. Use the vehicle selector on this page to confirm fitment.
What does a straight-through diesel muffler sound like?
It produces a rich, throaty exhaust note. The internal mesh and fiberglass absorb interior resonance, so the tone is deeper and fuller than a straight pipe.
Does it matter which direction I install the muffler?
No. The muffler has a non-directional design, so it can be installed in either direction.
Does the diesel muffler come with clamps or hardware?
No. The muffler does not include hardware. You may need to weld it in or supply your own clamps if your exhaust system does not have a muffler-delete pipe it can directly replace.
Can I replace a muffler-delete pipe with this muffler?
Yes. If your exhaust system has a muffler-delete pipe of the matching diameter, this muffler is designed to directly replace it.
What else do I need to complete my diesel exhaust?
