Stainless Steel Diesel Muffler
4-Inch
304 Stainless Steel
the popup

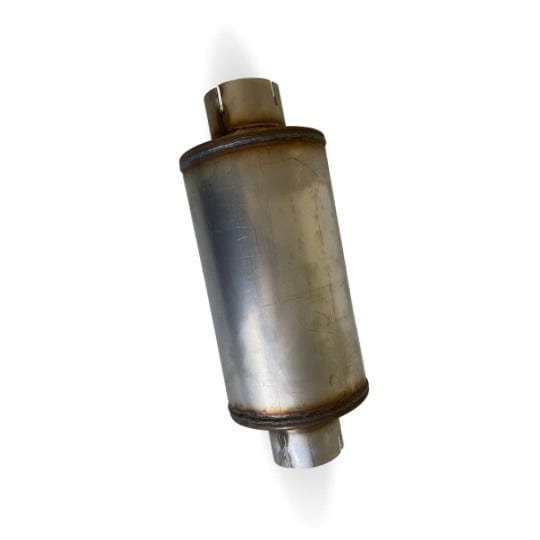

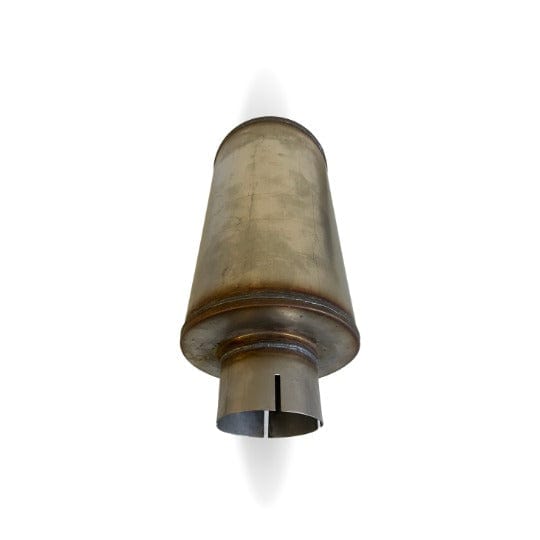

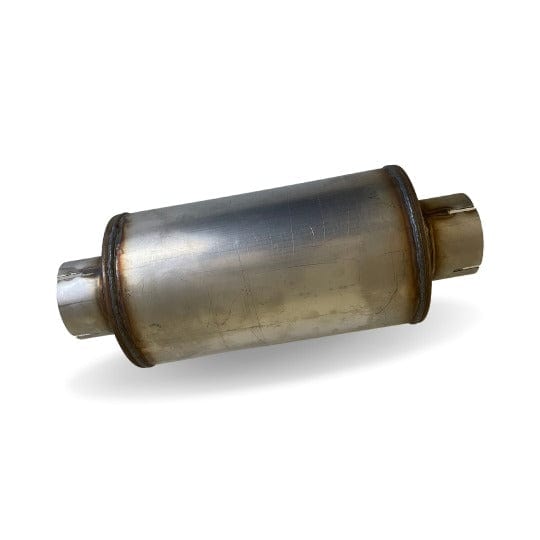

Stainless Steel Diesel Muffler
SKU: SKU:MUF-SS-4-S3
Couldn't load pickup availability
Select your vehicle
Choose your vehicle to confirm this product fits your truck
This stainless steel diesel muffler is a straight-through performance muffler for diesel trucks. It reduces back pressure and gives your truck a deep, throaty exhaust note. Choose a 4-inch diesel muffler or 5-inch diesel muffler to match your exhaust, then pick 304 or 409 stainless steel. It fits Cummins, Duramax, and Powerstroke trucks and pairs with our complete diesel straight exhaust systems.
This diesel truck muffler comes in four combinations, so you can match your exhaust pipe and choose the steel grade that suits your climate and budget.
Match the muffler to your existing exhaust pipe diameter for the cleanest fit and consistent flow.
Both grades share the same straight-through design and dimensions.
| Feature | 304 Stainless Steel | 409 Stainless Steel |
|---|---|---|
| Corrosion Resistance | Higher (more chromium plus nickel) | Good (lower chromium, no nickel) |
| Appearance Over Time | Keeps its finish longer | May develop surface discoloration |
| Price | Premium | More economical |
| Best For | Road salt, wet climates, visible installs | Value-focused builds and drier climates |
A muffler on a diesel engine controls exhaust noise and shapes the sound of your truck. Factory mufflers use chambers and baffles that can add back pressure. A straight-through diesel muffler uses a perforated core instead, so exhaust gas flows freely while internal mesh and fiberglass packing absorb unwanted resonance.
The result is a diesel exhaust muffler that helps your truck breathe easier and sound richer, without the harsh drone of a straight pipe.
| Specification | 4-Inch Diesel Muffler | 5-Inch Diesel Muffler |
|---|---|---|
| Inlet Size | 4-inch inner diameter | 5-inch inner diameter |
| Outlet Size | 4-inch inner diameter | 5-inch inner diameter |
| Overall Length | 20.5 inches | 20.5 inches |
| Material Options | 304 or 409 stainless steel | 304 or 409 stainless steel |
| Flow Design | Straight-through, non-directional | Straight-through, non-directional |
Every feature is designed to improve airflow and sound quality:
This multi-fitment diesel truck muffler fits a wide range of diesel vehicles, including Cummins, Duramax, and Powerstroke trucks. It works on both classic and late-model diesel trucks, as long as the inlet and outlet size matches your exhaust. Use the vehicle selector on this page to confirm fitment.
Installation is seamless with Black Bandit Exhaust Systems, which come with pre-bent and pre-welded hangers.
A straight-through muffler sits between a full straight pipe and a stock exhaust. It keeps strong flow while controlling drone.
| Option | Sound | Flow | Best For |
|---|---|---|---|
| Straight-Through Performance Muffler | Deep, throaty tone with reduced resonance | Low back pressure | Performance with a controlled, aggressive sound |
| Straight Pipe / Muffler Delete | Loudest, often with cabin drone | Unrestricted | Maximum volume where local laws allow it |
| Resonator Only | Targets specific drone frequencies | Low restriction | Fine-tuning tone alongside a muffler |
Get a complete, high-flow diesel exhaust in one order. Start with this muffler and add matching components in our kit builder:
The muffler is non-directional, so it can be installed in either direction. It is designed to directly replace a muffler-delete pipe of the same diameter.
A muffler controls exhaust noise and helps keep a diesel truck within acceptable sound levels. Many states and provinces have vehicle noise and exhaust equipment rules, so check your local regulations. A straight-through performance muffler keeps strong exhaust flow while still controlling harsh noise and drone.
Match the muffler to your exhaust pipe diameter. A 4-inch exhaust system takes the 4-inch diesel muffler, and a 5-inch system takes the 5-inch diesel muffler. Both are 20.5 inches long overall body.
304 stainless steel is better for road salt, wet weather, or keeping a clean finish longer. 409 stainless steel is a durable, more economical exhaust-grade option. Both versions share the same straight-through design and dimensions.
Yes. The muffler fits Cummins, Duramax, and Powerstroke diesel trucks, both classic and late model, as long as the inlet and outlet size matches your exhaust system. Use the vehicle selector on this page to confirm fitment.
It produces a rich, throaty exhaust note. The internal mesh and fiberglass absorb interior resonance, so the tone is deeper and fuller than a straight pipe.
No. The muffler has a non-directional design, so it can be installed in either direction.
No. The muffler does not include hardware. You may need to weld it in or supply your own clamps if your exhaust system does not have a muffler-delete pipe it can directly replace.
Yes. If your exhaust system has a muffler-delete pipe of the matching diameter, this muffler is designed to directly replace it.
Most builds pair this muffler with a straight diesel exhaust system in the matching diameter and a stainless exhaust tip. Off-road and competition builds may also add a DPF delete pipe.
