An L5P delete kit is a combined hardware and tuning package that removes or bypasses the factory DPF, DEF/SCR, and EGR emissions systems on the 6.6L Duramax and reprograms the ECM to run cleanly without them. Hardware alone causes constant fault codes and limp mode — proper tuning is non-negotiable.

The 6.6L L5P Duramax found in 2017–2025 Chevy Silverado 2500/3500 HD and GMC Sierra 2500/3500 HD leaves the factory with a full modern emissions stack: a DPF (Diesel Particulate Filter), DOC (Diesel Oxidation Catalyst), SCR (Selective Catalytic Reduction) with DEF injection, and an EGR (Exhaust Gas Recirculation) valve and cooler. Every one of those systems is monitored by the ECM through NOx sensors, EGT probes, pressure differential sensors, and DEF quality sensors.

A true L5p full delete kit for the L5P includes: a DPF/SCR race pipe to replace the factory aftertreatment section, an EGR delete kit with block-off plates and coolant reroute hardware, a high-flow downpipe, a properly calibrated ECM tune that disables all emissions monitoring, and (for 2017–2023 trucks) a CAN BUS plug kit to prevent false network fault codes. The tune is critical—hardware-only installations trap you in limp mode due to cascading DTCs. The tune disables all DPF regen cycles, turns off DEF injection commands, removes EGR actuation, and unlocks the fuel and timing tables so the engine can breathe and perform correctly. For 2017–2023 trucks, you also get the Unlock Tool Upgrade (no ECM replacement needed) or OBD2 flash credits depending on your year; 2024–2025 trucks require separate HP Tuners E42 unlock service.

There are two levels of deletion available. An EGR-only delete improves intake cleanliness and eliminates EGR cooler failure risk but leaves the DPF regen cycles intact. A DPF-only delete removes exhaust backpressure but leaves hot soot recirculating into your intake. A full delete kit (DPF + DEF + EGR)—is the complete solution and delivers maximum performance gains and reliability improvements. This equipment is sold for off-road, competition, and race use only.

For off-road and competition builders, the reasons to delete are clear: restore lost power, improve reliability, reduce maintenance costs, and extend engine life.

• 💪
  Recover Rated Engine Power The emissions stack restricts exhaust flow and intake cleanliness. Full deletion with proper tuning can unlock up to ~150 HP, depending on tune level. Factory L5P makes 445 HP; deleted builds can see measurable power recovery across the entire RPM band.
• 🛢️
  Improve Fuel Economy DPF regen cycles force the engine to run rich and hot to burn soot—that fuel does zero work. Owners commonly report 2–5 MPG improvements after deleting, driven by elimination of regen events and reduced exhaust pumping losses.
• ❄️
  Lower EGTs Under Load Removing DPF and SCR backpressure means the turbo doesn't work as hard to push exhaust out. Less backpressure = lower exhaust gas temperatures under towing loads, extending turbo life and protecting engine seals.
• 🔧
  Eliminate Expensive Failures DEF injectors fail. NOx sensors clog. EGR coolers leak coolant. SCR catalysts go bad. A full delete removes these failure-prone systems entirely—no more $1,000+ repairs or unexpected downtime.
• ⏱️
  No More Forced Regen Cycles DPF regen dilutes engine oil, damages internals, and kills fuel economy. Deletion stops these cycles permanently and protects your long-block under sustained high-load operation.

The L5P Duramax spans 2017–2025 across three distinct ECM platforms. Each generation has different tuning requirements and unlock procedures. Hardware compatibility is universal; the tuning interface and service requirements are what change.

The 2017–2019 L5P runs the original E41 ECM and receives the complete delete kit with included Unlock Tool Upgrade. This is the most straightforward path: no ECM replacement, no immobilizer relearn, no crank relearn required. You get the Unlock Tool included in your kit, allowing you to flash the delete tune directly without sending hardware anywhere. The kit includes 4 tune credits for the OBD2 flash interface, plus a full 5-level SOTF (Switch On The Fly) tuning package with 0 / 50 / 75 / 100 / 150 HP options. CAN BUS plug kits are also included to prevent network fault codes after NOx and DEF sensors are removed.

The 2020–2023 L5P continues to use the E41 ECM platform but with a refined unlock procedure compared to 2017–2019 trucks. The delete kit for 2020–2023 trucks includes the OBD2 Flash Delete Tuning Interface (4 credits), the complete 5-level SOTF tuning package, full EGR delete hardware, and CAN BUS plug kit. The Unlock Tool is supported with an updated process (no tool upgrade hardware needed). Like the earlier E41 trucks, there's no ECM replacement or relearn step—just plug into the OBD2 port and flash. The exhaust architecture, EGR cooler routing, and DPF/SCR layout remain the same across all E41 years, so hardware fitment and tuning strategy are proven and consistent.

GM's switch to the E42 ECM (also designated E92 in some documentation) starting in 2024 introduced a fundamentally different unlock requirement. The E42 uses tighter encryption and proprietary unlock protocols that cannot be handled directly via the standard Unlock Tool process. To delete a 2024–2025 L5P, the ECM must be sent to HP Tuners for external bench unlock service (not included with this kit). Once unlocked by HP Tuners, you receive a single calibration tune specific to your truck—no SOTF options are available for E42 platforms. The kit includes 8 tune credits for the OBD2 flash interface and the complete EGR delete hardware. CAN BUS plug kits are not available for 2024–2025 trucks; NOx and DEF sensors must remain physically plugged into their connectors.

Choose from full bundles, EGR-only deletion, DPF race pipes, or complete exhaust systems. Every option is engineered specifically for the L5P platform.

Complete Solution

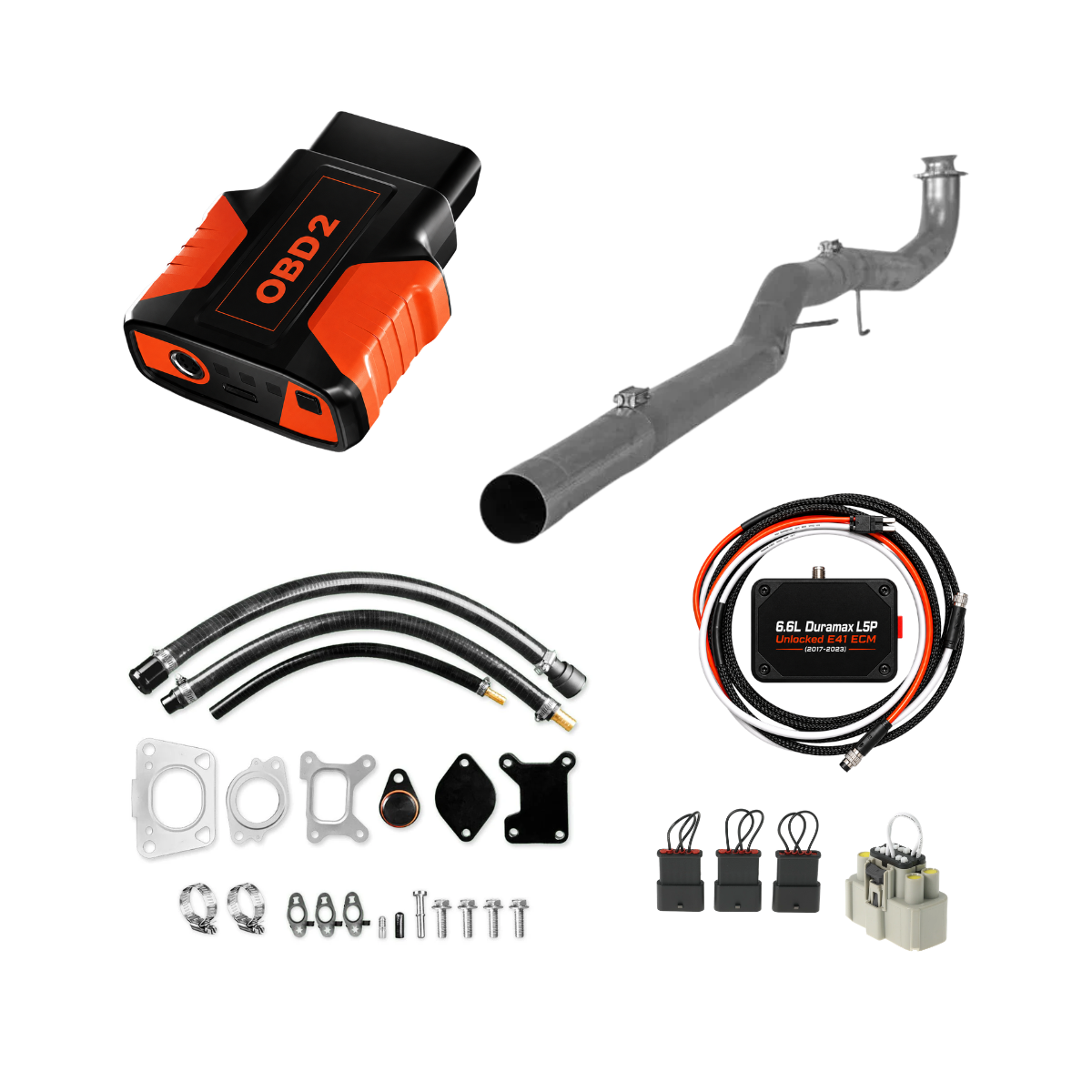

L5P Full Delete Kit

2017 · 2018 · 2019 · 2020 · 2021 · 2022 · 2023

• DPF/SCR race pipe — mandrel-bent design
• EGR delete kit with coolant reroute hardware
• High-flow 3.5" downpipe included
• CAN BUS plug kit (required for L5P)
• Calibrated delete tuner with multiple maps
• Complete installation instructions & video

Shop Full Delete Kit →

EGR Deletion

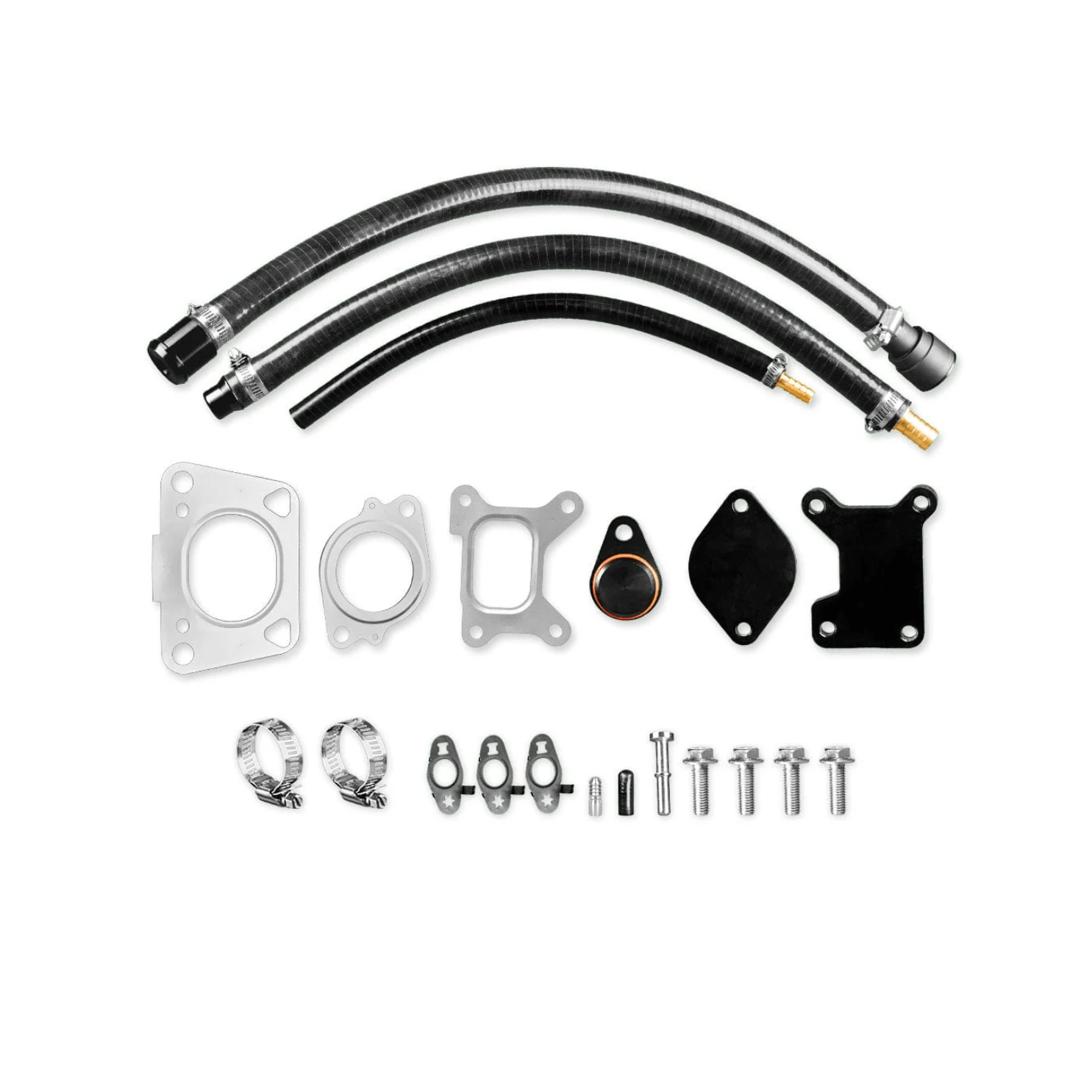

L5P EGR Delete Kit

2017 · 2018 · 2019 · 2020 · 2021 · 2022 · 2023 · 2024 · 2025

• Block-off plates & gaskets
• Coolant reroute hoses included
• Eliminates EGR cooler failure point
• Improves intake air cleanliness
• Requires separate tuning solution
• Fits all model years 2017–2025

Shop EGR Kit →

DPF Deletion

L5P DPF & CAT Delete Pipe

2017 · 2018 · 2019 · 2020 · 2021 · 2022 · 2023 · 2024 · 2025

• Mandrel-bent straight-through design
• Replaces factory DPF & SCR canister
• Direct bolt-on to factory hangers
• Unrestricted exhaust flow
• Requires DPF delete tuning
• Available 4" or 5" diameter

Shop DPF Pipe →

Full System

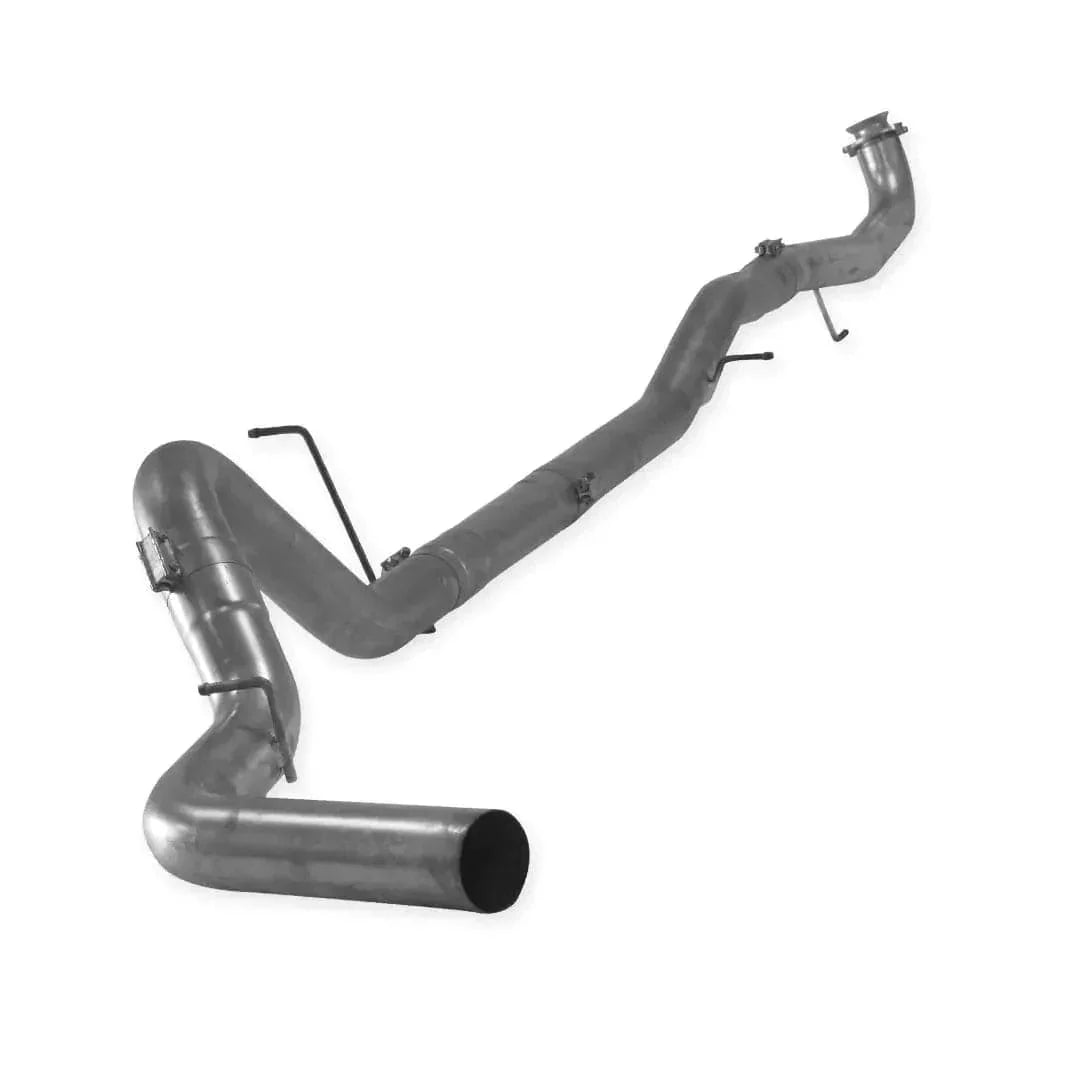

L5P Downpipe-Back Exhaust

2017 · 2018 · 2019 · 2020 · 2021 · 2022 · 2023 · 2024 · 2025

• Complete turbo-back exhaust system
• High-flow downpipe + mid-pipe + tail
• 4" or 5" stainless steel construction
• Mandrel bends for maximum flow
• Aggressive sound profile optional
• Premium performance option

Shop Exhaust System →

Maximize your delete build with these performance upgrades and accessories engineered for the L5P platform. Each component is designed to work seamlessly with your delete kit.

CCV Upgrade Kit

Crankcase Ventilation Shop Now →

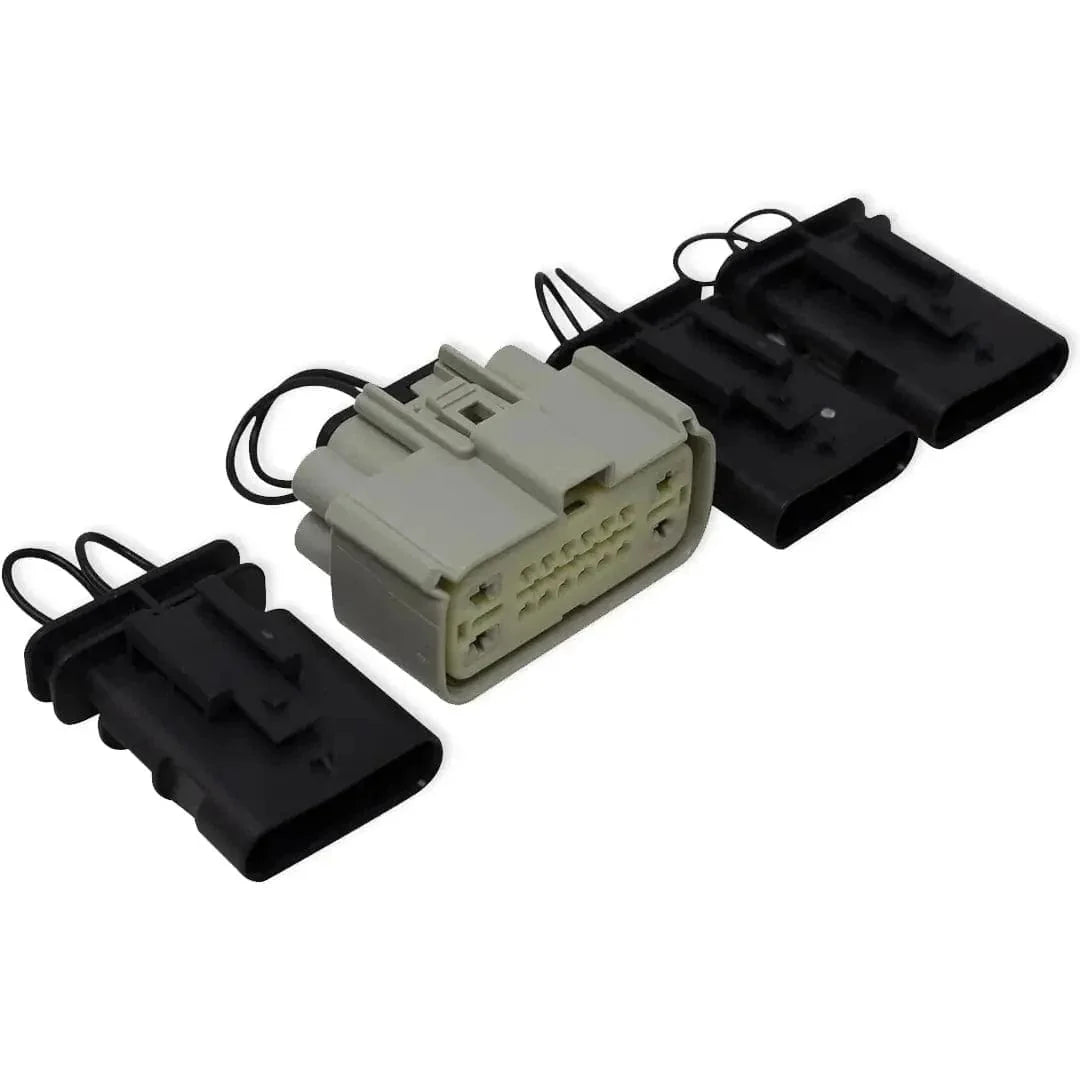

CAN BUS Plugs

Network Termination Shop Now →

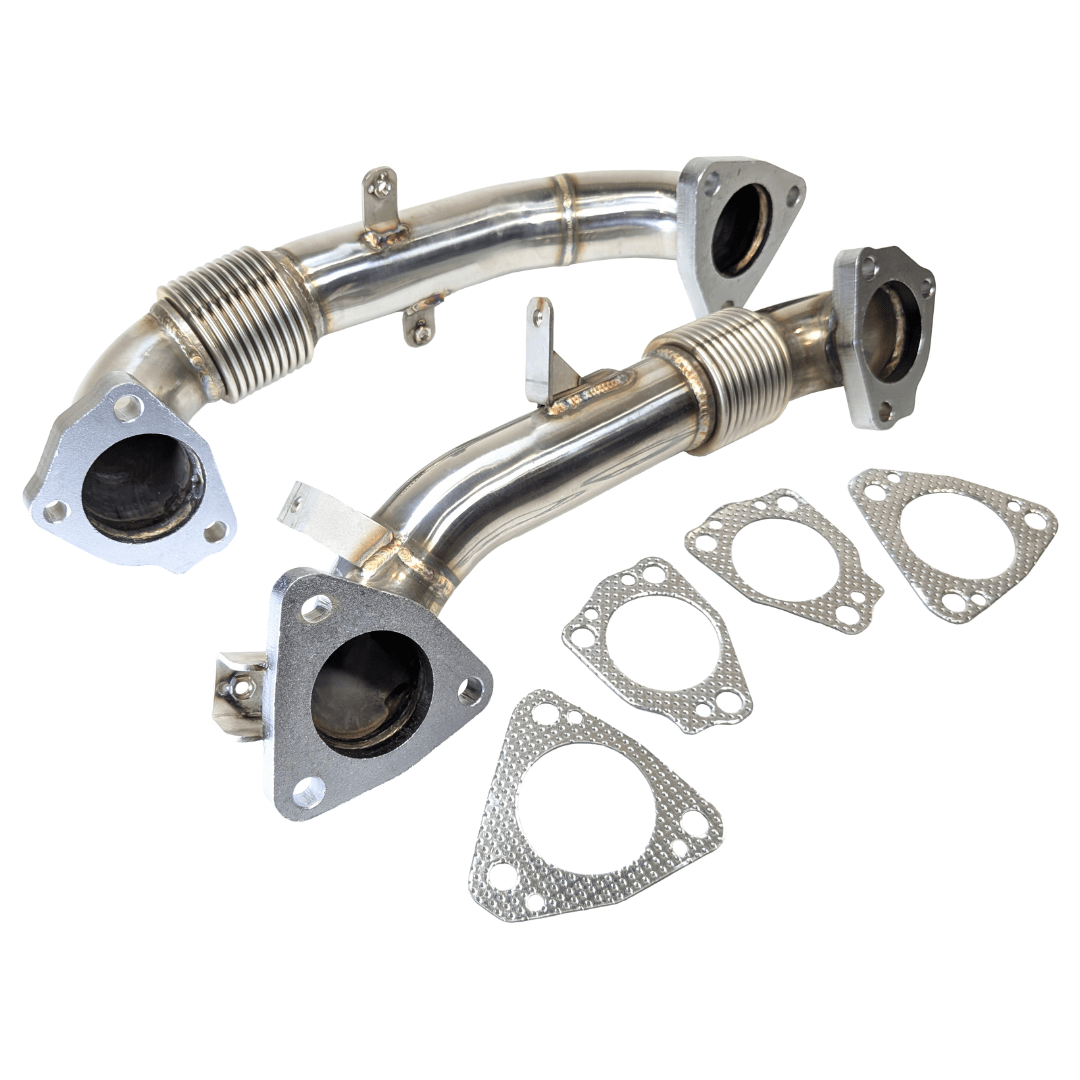

Up Pipes

Stainless Steel Set Shop Now →

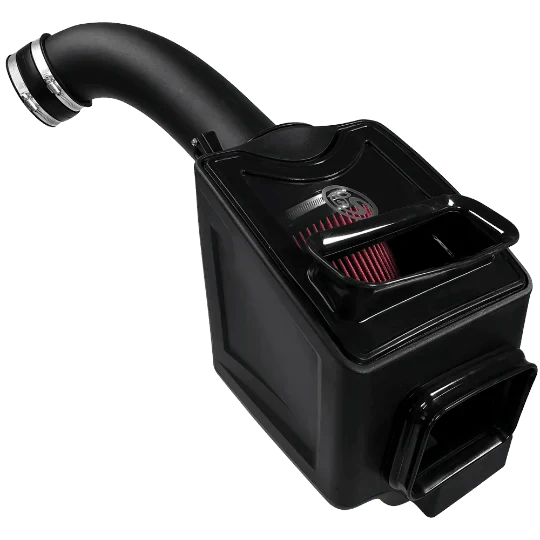

Cold Air Intake

Clean Intake Flow Shop Now →

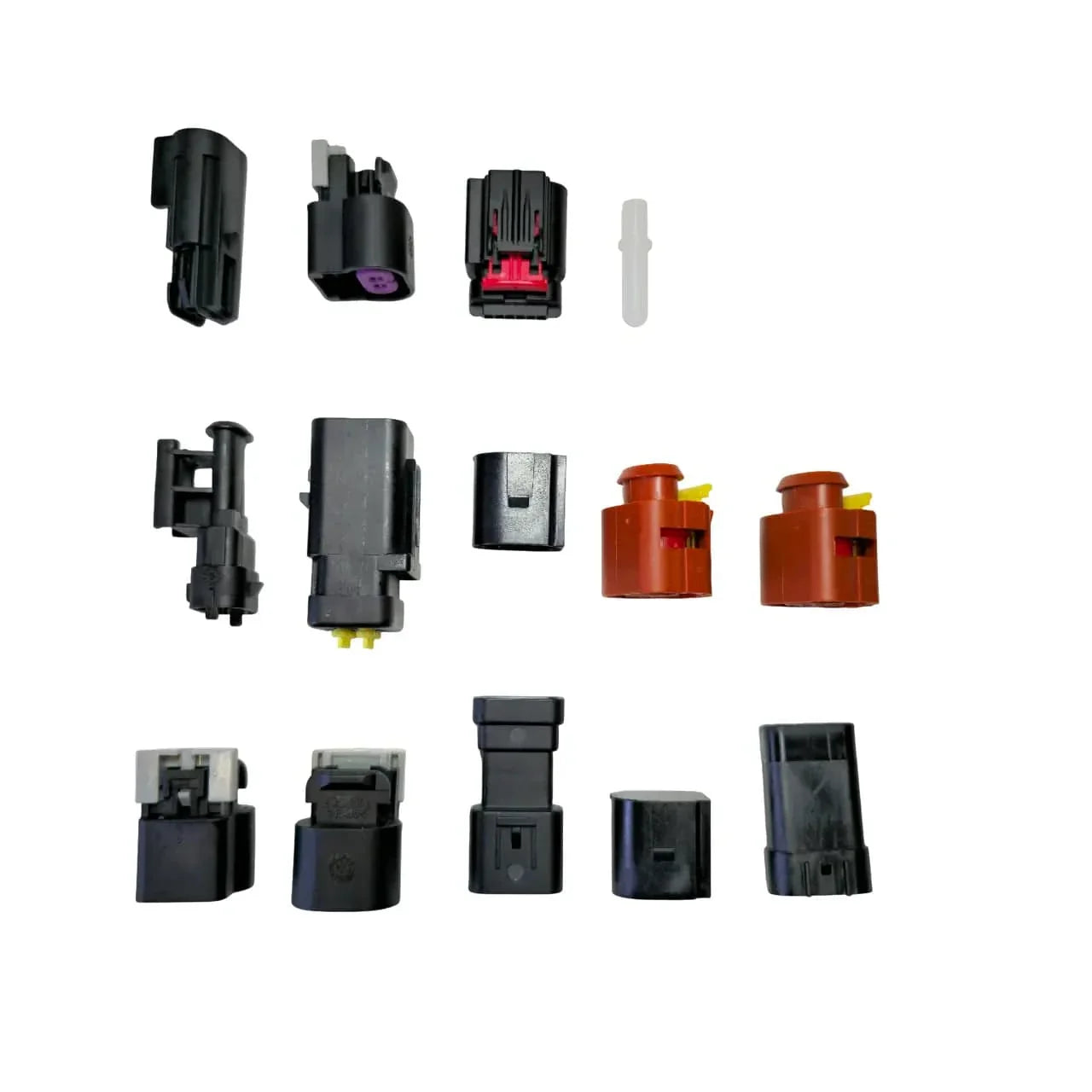

Tuner Harness Kit

Shibby Engineering Shop Now →

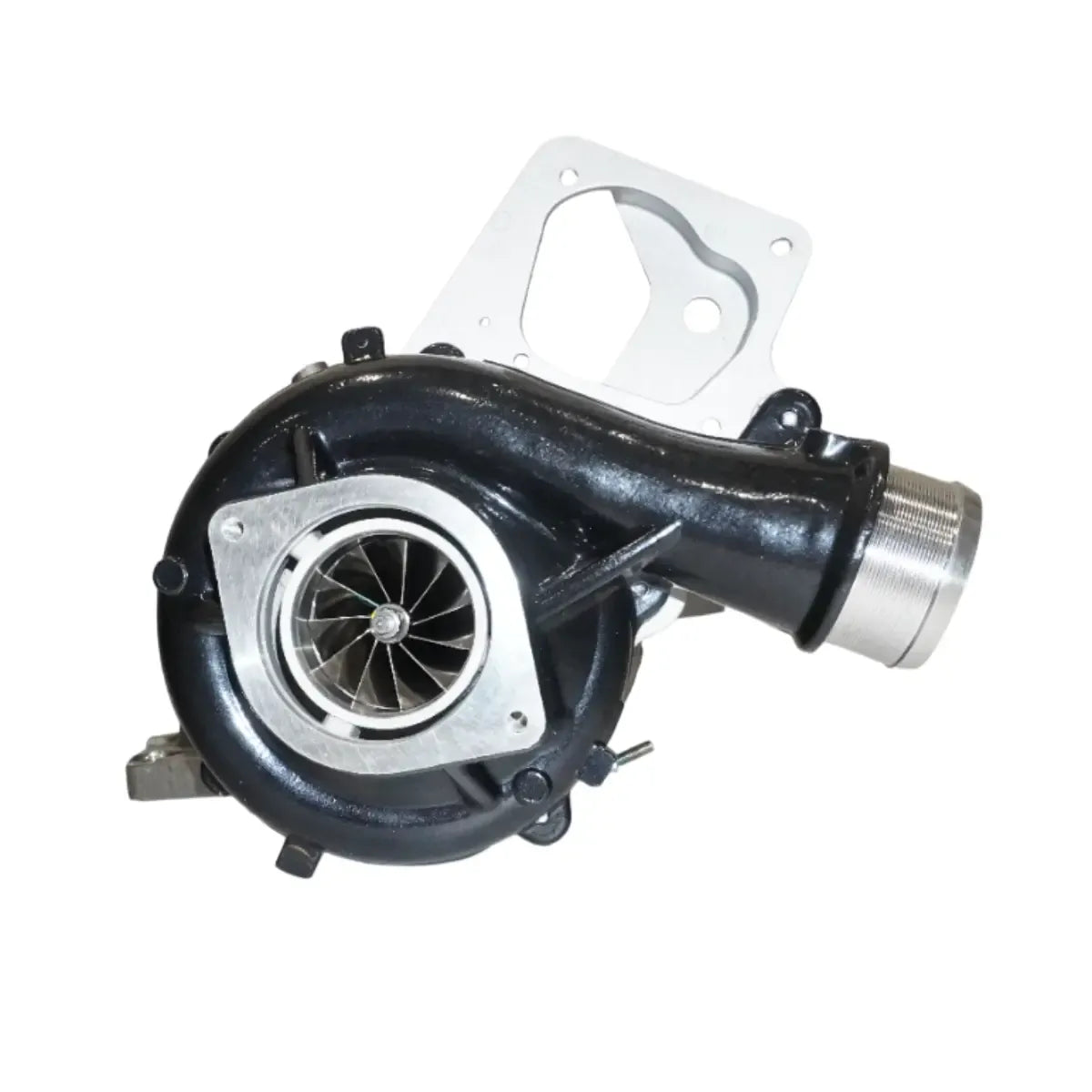

Turbo Replacement

2001–2026 Models Shop Now →

TCM Tuning Kit

Transmission Upgrade Shop Now →

A full L5P DPF and EGR delete takes 6–10 hours for an experienced DIYer with a lift. The process follows a specific sequence: ECM tune first, then DPF/SCR removal, race pipe installation, EGR removal, downpipe swap, CAN BUS plugs, and final verification.

Unlock the ECM and load the base delete tune before removing any hardware. This ensures the truck will start and run correctly once the emissions components are gone. Your delete kit includes the pre-loaded tuner device ready to use.

The L5P's CAN BUS plug kit is required to terminate the J1939 network properly after NOx and DEF sensors are removed. Skip this step and you'll chase ghost codes all day. This step is unique to the L5P platform (note: not required on 2024–2025 trucks).

Unplug EGT sensors, NOx sensors, and DEF lines. Drop the DPF/SCR/DOC section from the exhaust hangers. This section is heavy—have a floor jack or second set of hands ready. Be careful not to damage sensor connectors.

Bolt the new 4" or 5" race pipe in place using the supplied flanges and clamps. The L5P race pipe is flanged to OEM inlet/outlet specs for a clean bolt-up. Ensure all connections are hand-tight, then use a torque wrench to properly secure clamps.

Drain coolant as required. Remove the EGR valve, cooler, and associated piping. Install block-off plates and reroute coolant hoses per the kit instructions. Use new OEM gaskets throughout to prevent coolant leaks.

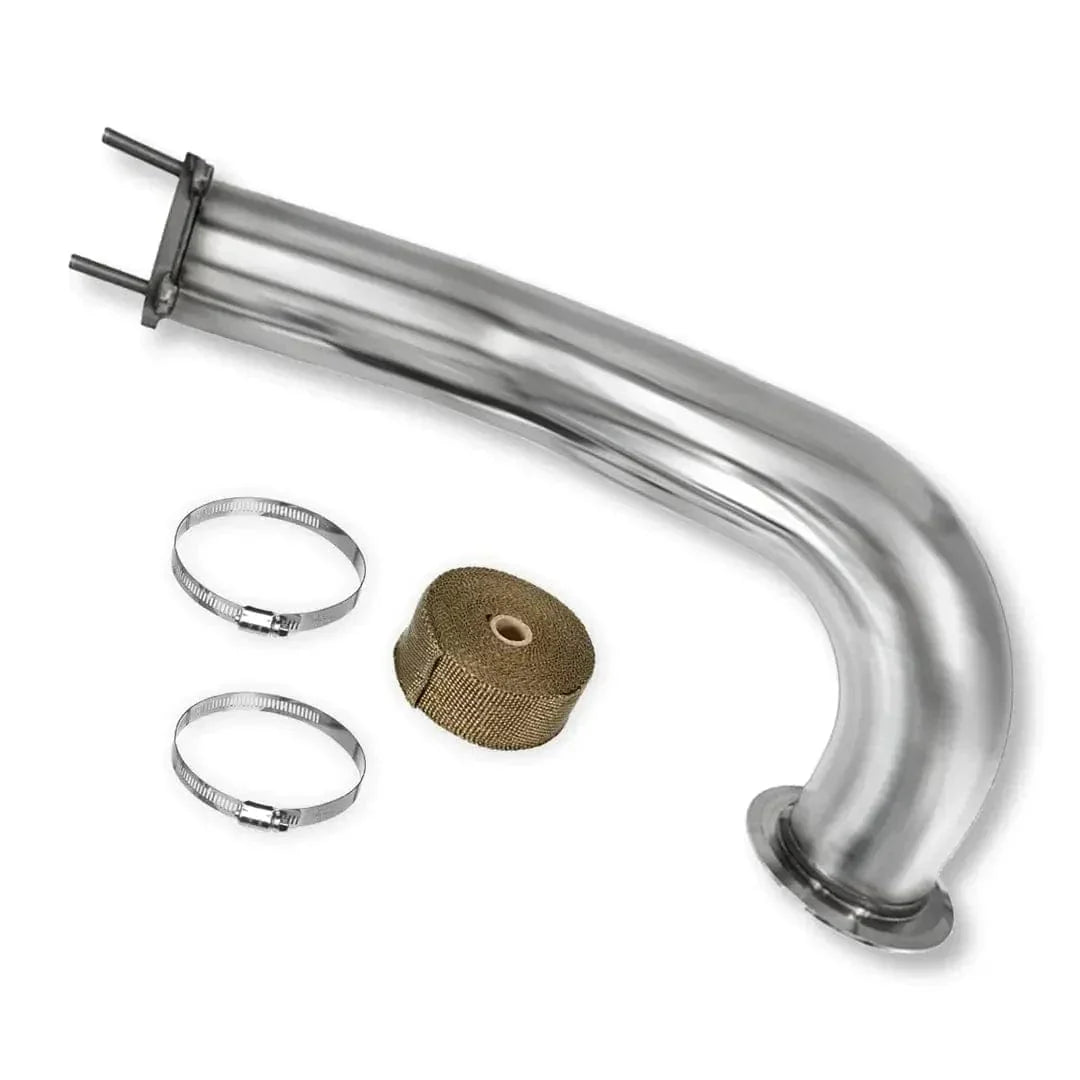

Remove the factory downpipe and install the high-flow 3.5" unit. Clearances are tight on the L5P—take your time here. Ensure the downpipe bolts to the turbo flange securely.

Refill and bleed the coolant system. Reconnect all electrical connectors that remain in the system. Load the final power-level tune, scan for any remaining codes, and verify no leaks. Start the engine and let it idle—brief check engine lights are normal as the system resets. Use your tuner's code clearing function to remove legacy fault codes.

Plan on 6–10 hours for a shop or experienced DIYer with a lift. Driveway installs add time—especially on the exhaust section where rust is a factor. Complete step-by-step instructions and video support come with your kit.

Hardware-only components typically run $600–$1,300. Full bundles with hardware and tuning range from $2,500 to $5,000+. Complete professional installation adds 6–10 hours of labor.

• 📦
  Hardware-Only Components EGR delete kit ($200–$400), DPF race pipe ($400–$700), downpipe ($200–$400), CAN BUS plugs ($100–$150) = $600–$1,300 total for individual sourcing.
• 🔧
  Full Delete Bundles The L5P Full Delete Kit starts at $4,534 and includes all hardware plus calibrated tuning. One purchase, zero compatibility guesswork.
• 👨‍🔧
  Professional Installation Labor 6–10 hours at typical diesel shop rates ($100–$150/hour) = $600–$1,500 in labor. Total installed cost for a complete build: $5,000–$6,500.
• 🛠️
  Supplies & Additional Costs Dexos D coolant, replacement gaskets, and incidental hardware: ~$100–$200. Returning to stock later (if needed) requires replacement OEM components plus labor and re-tune fees.

Deleting emissions equipment for on-road use violates the Clean Air Act. GM can deny powertrain warranty claims on modified trucks. L5P delete kits are sold strictly for off-road, competition, and race use.

42 U.S.C. § 7522(a)(3)(A) of the Clean Air Act makes it unlawful to remove or render inoperative any device installed on a motor vehicle to comply with emissions regulations.³ Section 7522(a)(3)(B) prohibits manufacturing, selling, or installing parts that bypass or defeat emissions control devices on vehicles used on public roads. Using a delete kit on a street-driven truck violates federal law. Penalties can include fines up to $5,000 for individuals.

Many states run visual and OBD-II emissions inspections. A deleted L5P will fail both.¹ States including California, New York, and others with enhanced inspection programs can impose additional fines and registration consequences. Check your state's specific inspection laws before modifying any truck driven on public roads.

GM's powertrain and emissions warranty specifies that modifications altering or removing emissions systems void coverage for related components.² Once your L5P is tuned and the emissions hardware is removed, assume any powertrain or emissions warranty claim can be denied. If your truck is still under warranty and that coverage matters to you, do not delete it.
