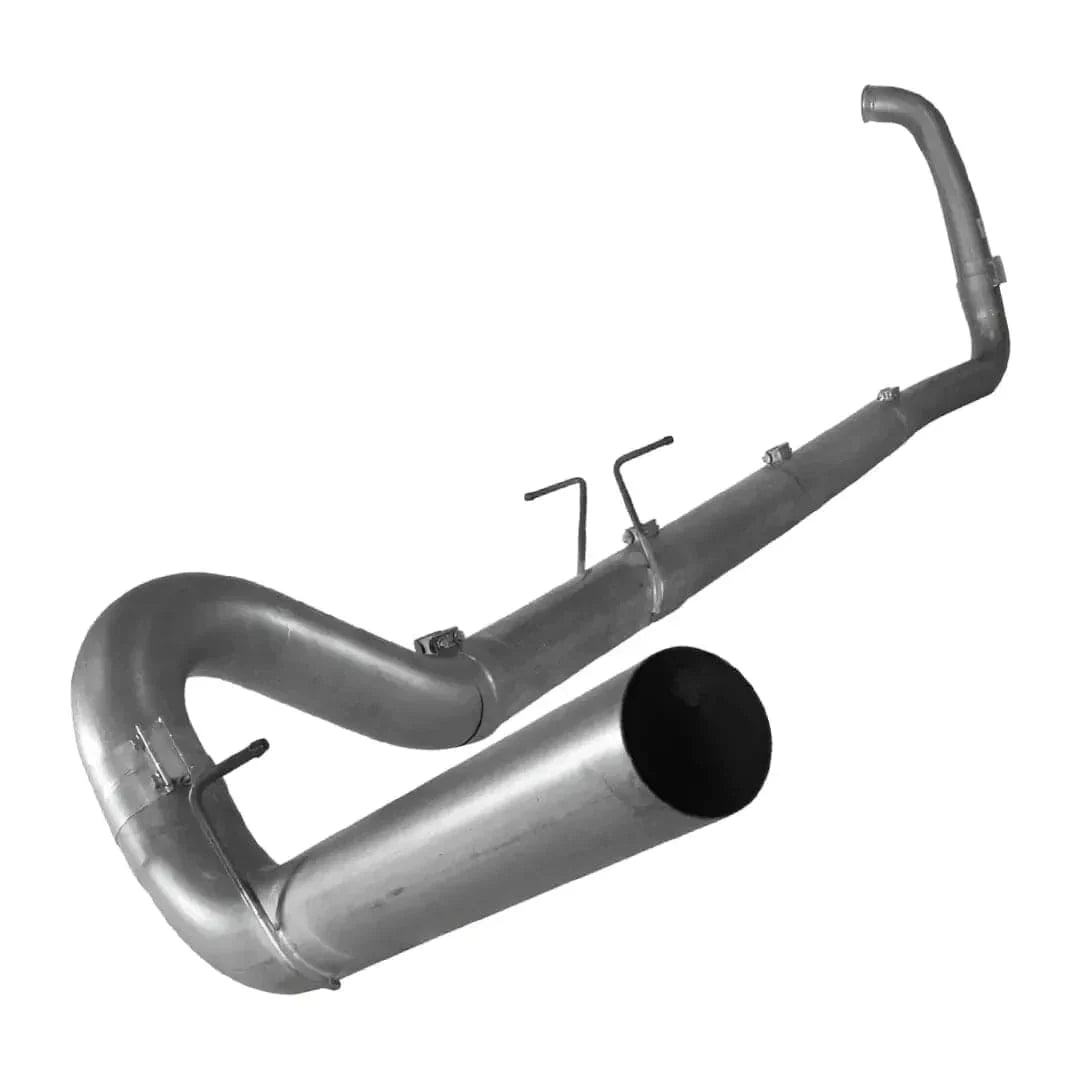

    Black Bandit Race Exhaust 5-inch Turbo Back Ford Powerstroke 6.0L Turbo Back Race Exhaust System (2003-2007)
  • For Off-Road Use Only

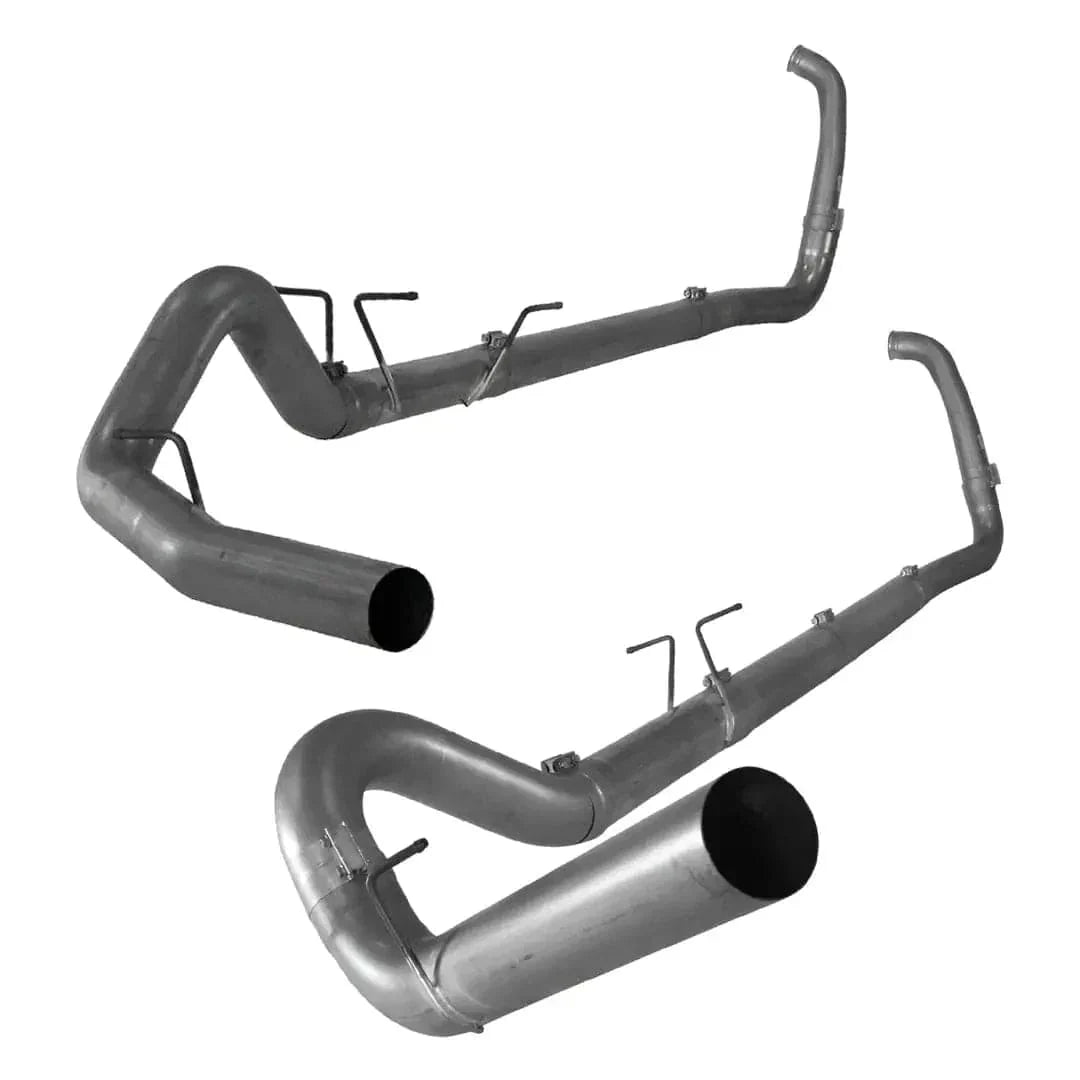

    Black Bandit Race Exhaust Ford Powerstroke 6.0L Turbo Back Race Exhaust System (2003-2007)
  • For Off-Road Use Only

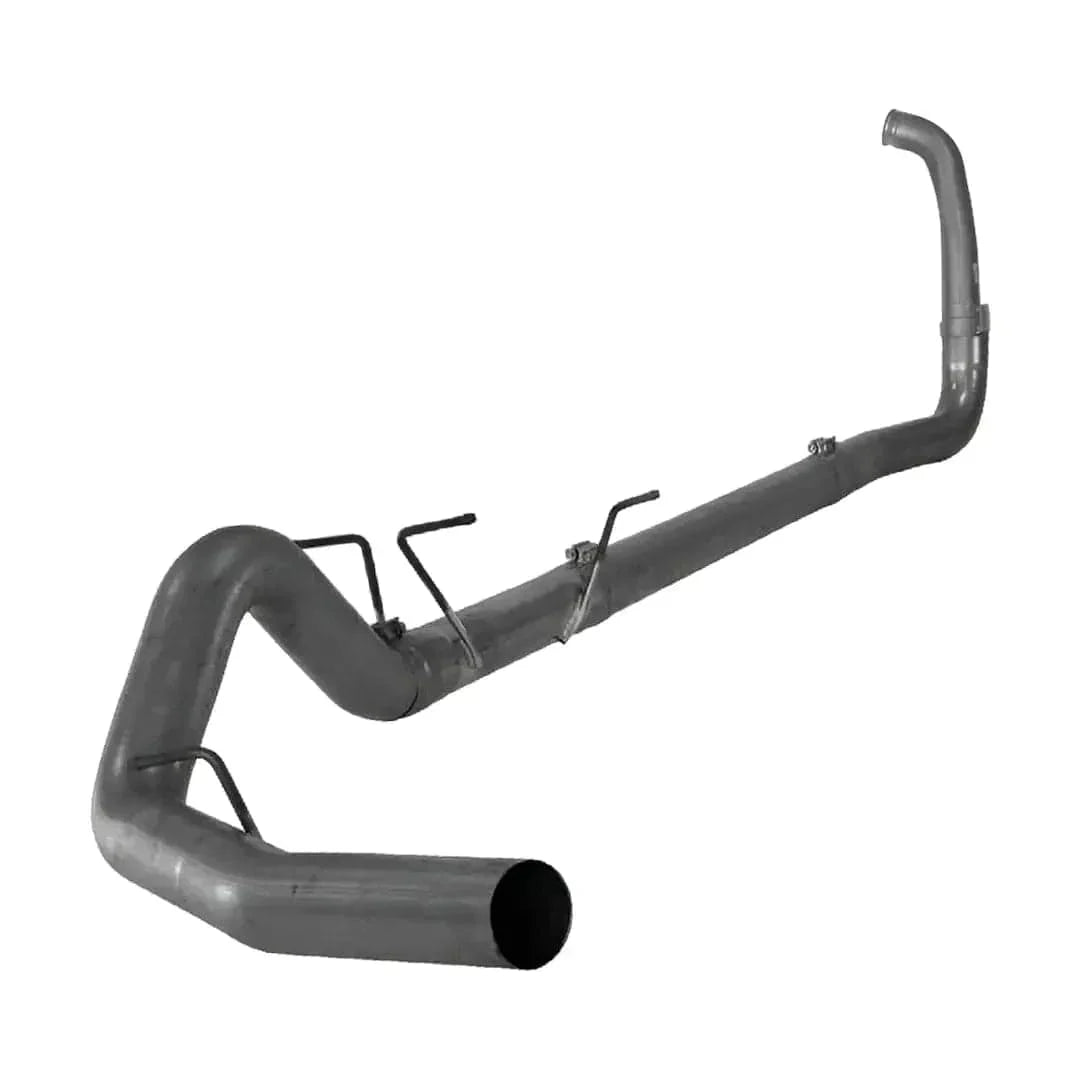

    Black Bandit Race Exhaust 4-inch Turbo Back Ford Powerstroke 6.0L Turbo Back Race Exhaust System (2003-2007)
1 2

Ford Powerstroke 6.0L Turbo Back Race Exhaust System (2003-2007)

Sku: ESSS-FOR-03-5

This product fits:

2003, 2004, 2005, 2006, 2007 Ford Powerstroke 6.0L F-250 / F-350 / F-450 Pickup
Extra Cab (EC), Crew Cab (CC), Short Box (SB), Long Box (LB), Dually
$878.90
$605.00
-31%
Shipping calculated at checkout.
Choose your Exhaust system: 5-inch Turbo Back
Choose your Exhaust Quality: T409 Stainless Steel information icon

🚨 ATTENTION 🚨

Notification for the incorrect product/variant will be listed here.

Click here to find the right tuner for your truck!
X

🚨 REMEMBER 🚨

Within the device vehicle info section, look for the value with the text containing "14C204":
HC3A-14C204-ABH

Once you receive the device, please contact us with your serial number, VIN, and ECU strategy so we can create the custom tunes and send it to you for tuning your vehicle.

OK

🚨 ATTENTION 🚨

Please agree to our Terms of Service for the Sprinter tune:

Guaranteed safe checkout

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Please note: All sales of exhaust pipes, straight pipes, and engine pipes are final and Non-Returnable and Non-Refundable

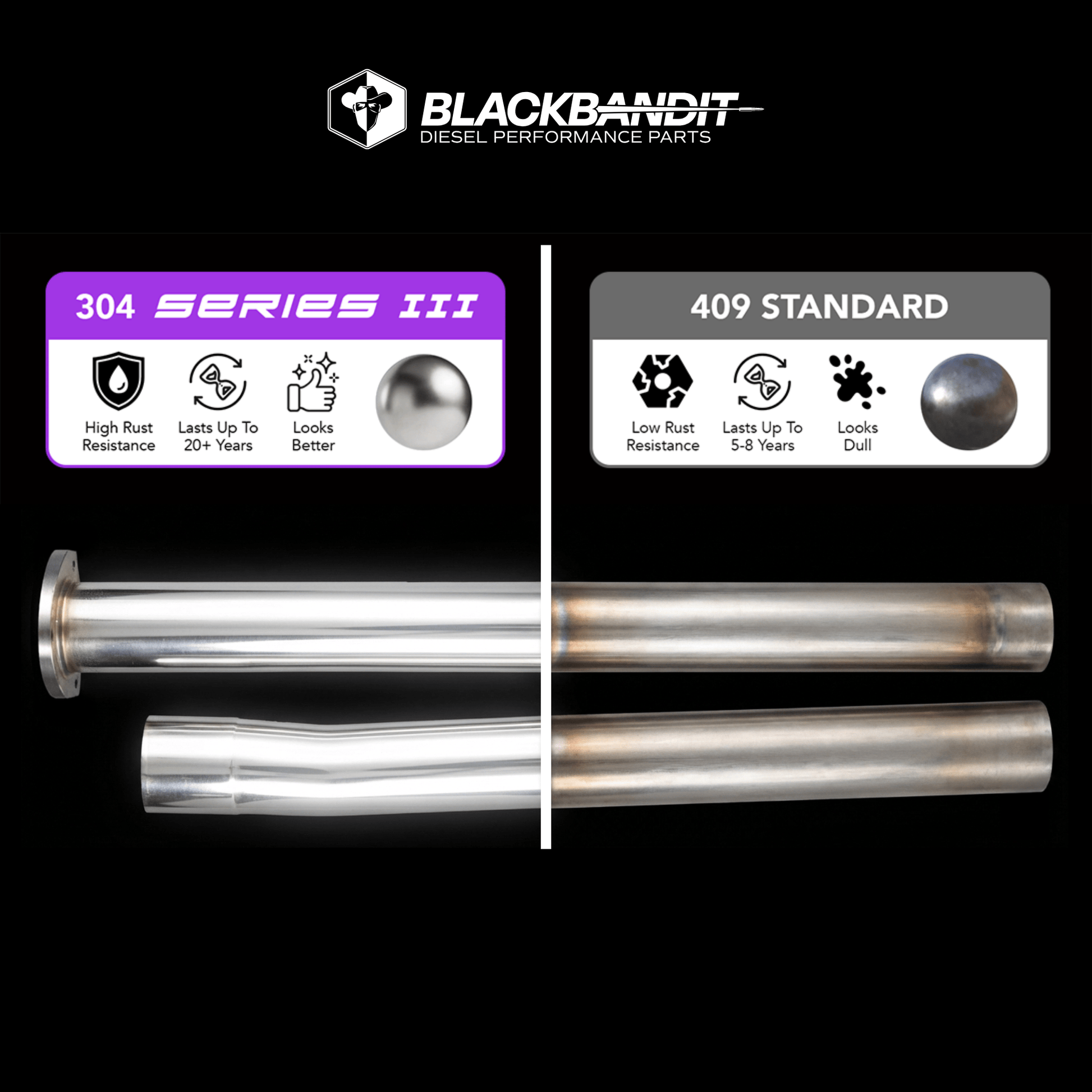

Black Bandit Series 3 material image
T304 Stainless Steel

The Purest Stainless Steel used in Exhaust System Manufacturing

rust resistant icon

High Rust Resistance

Lasts up to 20+ years icon

Lasts Up To 20+ years

Looks better icon

Looks Better

Black Bandit title material-image
T409 Stainless Steel

The Standard Stainless Steel used in Exhaust System Manufacturing

rust prone icon

Low Rust Resistance

Lasts up to 20+ years icon

Lasts Up To 5-8 Years

Looks better icon

Looks Dull

Attention

A 2022 Cummins Tune Package was added to your cart. This tune is a beta tune that may cause the following:

  • Low power
  • Poor fuel mileage
  • Engine codes that may appear
  • Poor shifting characteristics

For a tested and proven tune, please view our Ram Cummins 6.7L All-in-One DPF/DEF/EGR Delete Kit w/ECM Swap (2022-2024)

Attention

You have added a product to your cart that requires the Service. This required additional service is NOT included in the price shown on TunerDepot.com. This means that you will be required to pay for the Service in addition to the product you have just added to the cart.

Product Overview

The Ford Powerstroke 6.0L Exhaust System is built for maximum exhaust flow. It is made for 2003–2007 Ford Super Duty pickup trucks with the 6.0L Powerstroke diesel engine. The system comes in 4-inch or 5-inch options. It removes factory emissions parts such as the catalytic converter and DPF. This helps airflow and improves turbocharger efficiency.

The system is designed only for pickup trucks. It focuses on durability and accurate fitment. It supports different cab and bed configurations. It is made for performance-focused builds and maximum exhaust flow.

Vehicle Compatibility

Year Make Model Body Type
2003–2007 Ford F-250 Super Duty Pickup
2003–2007 Ford F-350 Super Duty Pickup
2003–2007 Ford F-450 Super Duty Pickup
2003–2007 Ford Harley-Davidson Edition with
6.0L Powerstroke Diesel		 Pickup

Important Compatibility Notes

  • Not compatible with Cab & Chassis models
  • Designed exclusively for pickup truck exhaust routing
  • Automatic transmission applications only

Failure to confirm vehicle configuration prior to purchase may result in improper fitment.

Technical Specifications

Engine 6.0L Powerstroke Diesel
System Type Turbo-back exhaust (competition/race design)
Exhaust Diameter Options 4-inch Turbo-Back; 5-inch Turbo-Back
Material Options T304 Stainless Steel; T409 Stainless Steel
Cab Configurations Supported Extra Cab (EC); Crew Cab (CC)
Bed Configurations Supported Short Box (SB); Long Box (LB)
Dually Support Supported
Transmission Compatibility Automatic transmission applications only
Downpipe Stainless steel downpipe with smooth transition
Hangers OE-style hangers engineered for factory mounting points
Muffler Muffler-free; optional diesel muffler Sold Separately
Construction Bung-free
Hardware Included Complete hardware package included

System Features

  • Choice of 4-inch or 5-inch turbo back exhaust for Powerstroke 6.0L
  • Stainless steel downpipe with smooth transition
  • Material options:
    • T304 Stainless Steel for superior corrosion resistance
    • T409 Stainless Steel for strength and cost efficiency
  • OE-style hangers engineered for factory mounting points
  • Muffler-free, competition-ready design for maximum exhaust flow
  • Bung-free construction for clean routing and simplified installation
  • Complete hardware package included for installation-ready configuration

Performance Benefits

Exhaust Flow

Turbo-back configuration eliminates restrictive factory components. This improves exhaust flow and lowers backpressure.

Turbocharger Response

Lower exhaust restriction improves turbo spool. Throttle response is better under load.

Thermal Efficiency

Better exhaust evacuation helps lower exhaust gas temperatures (EGTs). This is helpful during long operations.

Acoustic Output Control

The straight-through race design produces an aggressive exhaust sound. An optional Diesel muffler can be added for sound control.

Package Contents

  • Stainless steel turbo-back exhaust piping (4" or 5", material-specific)
  • Stainless steel downpipe with transition
  • OE-style exhaust hangers
  • All required clamps, hardware and mounting components

Installation Protocol and Technical Notes

Installation Complexity: Moderate
Professional installation is recommended Installation Guidelines:

  • Factory exhaust removal required
  • Verify hanger alignment before final tightening
  • Ensure adequate clearance around drivetrain and suspension components
  • Re-torque all exhaust connections after initial heat cycle

Optional Configuration

Muffler Addition: A compatible 4-inch or 5-inch inlet/outlet muffler may be installed to tailor exhaust sound without impacting performance characteristics.

Compliance and Use Statement

This Ford Powerstroke 6.0 Exhaust System is designed for off-road and race use only. Always make sure you’re in compliance with local emissions regulations.

Important Product Information

Off-Road Use Only: The products sold on this website are intended for off-road use only, and may not be legal for use on public highways where pollution control laws apply.

Check Local Laws: Before purchasing and installing any of these parts, please check your local and state laws to confirm whether the modifications are legal in your area.

Professional Installation Recommended: These kits and parts are strongly recommended to be installed by professional mechanics only. Improper installation may lead to performance issues or damage to your vehicle. Unless specified differently on the product page, our parts do not include installation instructions. They are intended for individuals with a proficient understanding of mechanical systems and procedures. Like many aftermarket parts compatible with a variety of vehicles, minor adjustments or modifications may be necessary during the installation process. We cannot accept returns or offer refunds on the basis of an inability to complete the installation due to the absence of instructions.

Warranty: The use of these parts will void the warranty of your vehicle. Please confirm with your vehicle manufacturer before purchase and installation.

No Liability: Tuner Depot is not responsible for any damage or issues that may arise from the use of these parts.

Product Images: Product images are for illustrative purposes only and may differ from the actual product due to manufacturer design changes or improvements.

No Performance Guarantees: While these parts are designed to enhance the performance of your vehicle, no guarantees are made regarding the specific performance gains that will be achieved.
