    Black Bandit Coolant Filteration Ford Powerstroke 6.0L - Coolant Filtration System (2003-2007)
1 2

6.0L Powerstroke Coolant Filtration System | FORD 2003-2007

Sku: A-CF-FOR-06

This product fits:

2003-2007 Ford Powerstroke 6.0L F-250 / F-350
$313.50
$129.99
-59%
Shipping calculated at checkout.

🚨 ATTENTION 🚨

Notification for the incorrect product/variant will be listed here.

Click here to find the right tuner for your truck!
X

🚨 REMEMBER 🚨

Within the device vehicle info section, look for the value with the text containing "14C204":
HC3A-14C204-ABH

Once you receive the device, please contact us with your serial number, VIN, and ECU strategy so we can create the custom tunes and send it to you for tuning your vehicle.

OK

🚨 ATTENTION 🚨

Please agree to our Terms of Service for the Sprinter tune:

Guaranteed safe checkout

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Black Bandit Series 3 material image
T304 Stainless Steel

The Purest Stainless Steel used in Exhaust System Manufacturing

rust resistant icon

High Rust Resistance

Lasts up to 20+ years icon

Lasts Up To 20+ years

Looks better icon

Looks Better

Black Bandit title material-image
T409 Stainless Steel

The Standard Stainless Steel used in Exhaust System Manufacturing

rust prone icon

Low Rust Resistance

Lasts up to 20+ years icon

Lasts Up To 5-8 Years

Looks better icon

Looks Dull

Attention

A 2022 Cummins Tune Package was added to your cart. This tune is a beta tune that may cause the following:

  • Low power
  • Poor fuel mileage
  • Engine codes that may appear
  • Poor shifting characteristics

For a tested and proven tune, please view our Ram Cummins 6.7L All-in-One DPF/DEF/EGR Delete Kit w/ECM Swap (2022-2024)

Attention

You have added a product to your cart that requires the Service. This required additional service is NOT included in the price shown on TunerDepot.com. This means that you will be required to pay for the Service in addition to the product you have just added to the cart.

Introduction

The Ford Powerstroke 6.0L coolant filtration system is a bypass filtration kit for 2003–2007 Ford 6.0L Powerstroke engines that captures casting sand, metal shavings and mineral deposits before they can damage the water pump, EGR cooler and oil cooler.

Vehicle Compatibility

  • Years: 2003, 2004, 2005, 2006, 2007
  • Make: Ford
  • Engine: 6.0L Powerstroke Diesel

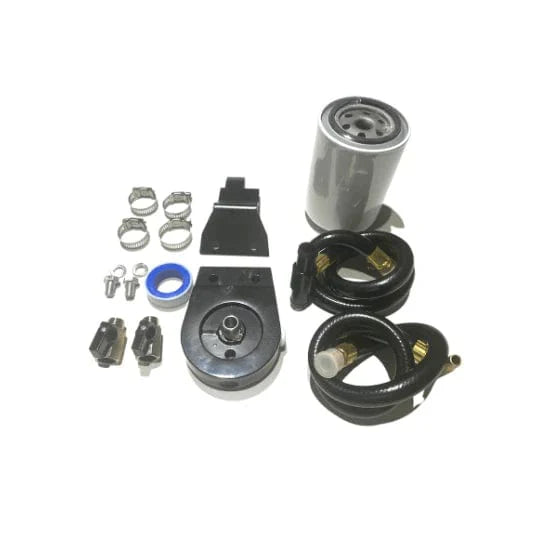

What's Included

  • Coolant Filter – replaceable filter element, unscrews for easy replacement
  • Filter Block – CNC-machined anodized billet 6061 aluminum
  • Mounting Bracket – mounts to factory holes, no drilling required
  • Silicone Hoses – pre-assembled fittings, tested to withstand more than double the recommended radiator cap pressure
  • Installation Hardware – everything needed for a complete install

Technical Specifications

Filter Block Material CNC-machined anodized solid billet 6061 aluminum
Hose Material High-strength, abrasion-resistant silicone

Key Features & Build Details

  • CNC-machined anodized billet 6061 aluminum filter block – machined from solid billet aluminum and anodized for added durability.
  • Mounts to factory holes – no drilling required. Uses the included bracket and existing factory mounting points.
  • Pre-assembled silicone hose fittings – leak-proof connections tested to withstand more than double the recommended radiator cap pressure.
  • Screw-off filter element – unscrews for fast, straightforward replacements.

Performance Benefits

  • Protects water pump, EGR cooler and oil cooler – filters out casting sand, metal shavings and mineral deposits before they can damage critical cooling system components.
  • Bypass filtration design – maintains optimal coolant flow while continuously filtering contaminants from the system.

Installation & Notes

Mounts to factory holes using the included bracket — no drilling required. All hardware included. Change the first filter at 500 miles. Change the second and third filters every 3,000 miles. After that, replace the filter once per year. Pre-assembled silicone hose fittings are leak-proof out of the box.

Frequently Asked Questions

Q: When do I change the filter?
A: First change at 500 miles. Second and third changes every 3,000 miles. After that, once per year.

Q: Do I need to drill any holes for installation?
A: No. The filter block mounts to factory holes using the included bracket.

Q: What contaminants does this filter remove?
A: Casting sand, metal shavings and mineral deposits that build up in the coolant over time.

Q: What components does this protect?
A: Water pump, EGR cooler and oil cooler.

Q: Is all hardware included?
A: Yes. Filter, filter block, mounting bracket, silicone hoses and all installation hardware are included.

Please Note: Change the first filter at 500 miles. Change the second and third filters every 3,000 miles. After that, replace once per year.
