• For Off-Road Use Only

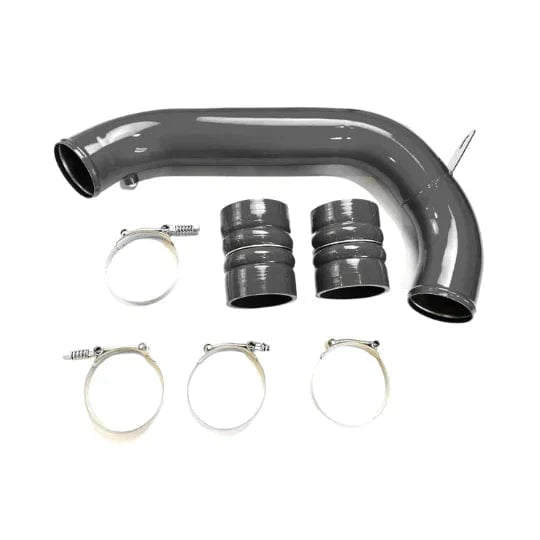

    Black Bandit Intercooler Pipe Ford Powerstroke 6.4L - Cold Side Intercooler Charge Pipe Kit (2008-2010)
1 2

6.4L Powerstroke Intercooler Charge Pipe Kit | Cold Side Upgrade | Ford 2008–2010

Sku: INT-FOR-08-CS-C

This product fits:

2008-2010 Ford Powerstroke 6.4L F-250 / F-350
$220.00
$165.00
-25%
Shipping calculated at checkout.

🚨 ATTENTION 🚨

Notification for the incorrect product/variant will be listed here.

Click here to find the right tuner for your truck!
X

🚨 REMEMBER 🚨

Within the device vehicle info section, look for the value with the text containing "14C204":
HC3A-14C204-ABH

Once you receive the device, please contact us with your serial number, VIN, and ECU strategy so we can create the custom tunes and send it to you for tuning your vehicle.

OK

🚨 ATTENTION 🚨

Please agree to our Terms of Service for the Sprinter tune:

Guaranteed safe checkout

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Black Bandit Series 3 material image
T304 Stainless Steel

The Purest Stainless Steel used in Exhaust System Manufacturing

rust resistant icon

High Rust Resistance

Lasts up to 20+ years icon

Lasts Up To 20+ years

Looks better icon

Looks Better

Black Bandit title material-image
T409 Stainless Steel

The Standard Stainless Steel used in Exhaust System Manufacturing

rust prone icon

Low Rust Resistance

Lasts up to 20+ years icon

Lasts Up To 5-8 Years

Looks better icon

Looks Dull

Attention

A 2022 Cummins Tune Package was added to your cart. This tune is a beta tune that may cause the following:

  • Low power
  • Poor fuel mileage
  • Engine codes that may appear
  • Poor shifting characteristics

For a tested and proven tune, please view our Ram Cummins 6.7L All-in-One DPF/DEF/EGR Delete Kit w/ECM Swap (2022-2024)

Attention

You have added a product to your cart that requires the Service. This required additional service is NOT included in the price shown on TunerDepot.com. This means that you will be required to pay for the Service in addition to the product you have just added to the cart.

Introduction

The cold-side intercooler charge pipe kit replaces the factory plastic charge pipe on the 2008–2010 Ford F-250 and F-350 6.4L Powerstroke. The OEM pipe restricts airflow and cracks under sustained boost pressure. This kit uses mandrel-bent aluminum tubing, 4-ply silicone couplers and heavy-duty spring clamps to improve airflow efficiency and eliminate a known failure point between the intercooler outlet and throttle body inlet.

What Does a Cold-Side Intercooler Pipe Do?

The cold-side charge pipe carries cooled, compressed air from the intercooler outlet to the throttle body inlet. Maintaining full bore diameter through this section reduces pressure drop, lowers EGTs and improves throttle response — particularly under towing or high-load conditions.

Features

  • Mandrel-bent aluminum tubing — consistent internal diameter through all bends
  • 4-ply silicone couplers — rated for high-pressure boost applications
  • Heavy-duty spring clamps — continuous clamping force through thermal cycles
  • Direct OEM fit — no cutting, drilling or fabrication required
  • Complete kit — all pipes, couplers and clamps included

Benefits

  • Eliminates OEM plastic pipe cracking and deformation
  • Reduces intake restriction for full boost delivery to the throttle body
  • Lowers EGTs during towing and sustained load
  • Prevents boost leaks at coupler connection points
  • Improves throttle response under load

Vehicle Compatibility

  • Years: 2008, 2009, 2010
  • Make: Ford
  • Model: F-250, F-350
  • Engine: 6.4L Powerstroke Diesel
  • Note: Cold-side only. Pair with the hot-side intercooler charge pipe kit for full replacement.

Technical Specifications

Material Aluminum alloy
Construction Mandrel-bent
Couplers 4-ply reinforced silicone
Clamps Heavy-duty spring clamps
Fitment Direct OEM replacement
Included Pipe sections, couplers, clamps
Emissions Does not remove or alter emissions components

Installation & Notes

  • Basic hand tools only — no cutting, welding, or fabrication needed
  • All hardware included for standard installation
  • Inspect intercooler outlet and throttle body inlet boots before install
  • Perform a boost leak check before returning to service
  • No ECU tuning required — no DTC impact

Frequently Asked Questions

Q: Does this fit both F-250 and F-350?
A: Yes. Fits all 2008–2010 Ford F-250 and F-350 Super Duty trucks with the 6.4L Powerstroke.

Q: Is all hardware included?
A: Yes. Pipe sections, silicone couplers, and spring clamps are all included.

Q: How difficult is installation?
A: Straightforward for anyone with basic mechanical experience. Direct-fit, no fabrication required.

Q: Do I need a tune after installing this?
A: No. This is a bolt-on hardware replacement. No tuning or ECU changes required.

Q: Should I replace the hot-side pipe at the same time?
A: Recommended. The hot-side intercooler charge pipe kit eliminates all OEM plastic charge pipe failure points in one service.

Please Note: The vehicle must be properly tuned and verified to have no fault codes before removing or modifying any emissions components. Skipping this step can damage the ECM and may void the warranty.

Legal Notice: This product is designed and intended for off-road and race use only. Always make sure you're in compliance with local emissions regulations.

Important Product Information

Off-Road Use Only: The products sold on this website are intended for off-road use only, and may not be legal for use on public highways where pollution control laws apply.

Check Local Laws: Before purchasing and installing any of these parts, please check your local and state laws to confirm whether the modifications are legal in your area.

Professional Installation Recommended: These kits and parts are strongly recommended to be installed by professional mechanics only. Improper installation may lead to performance issues or damage to your vehicle. Unless specified differently on the product page, our parts do not include installation instructions. They are intended for individuals with a proficient understanding of mechanical systems and procedures. Like many aftermarket parts compatible with a variety of vehicles, minor adjustments or modifications may be necessary during the installation process. We cannot accept returns or offer refunds on the basis of an inability to complete the installation due to the absence of instructions.

Warranty: The use of these parts will void the warranty of your vehicle. Please confirm with your vehicle manufacturer before purchase and installation.

No Liability: Tuner Depot is not responsible for any damage or issues that may arise from the use of these parts.

Product Images: Product images are for illustrative purposes only and may differ from the actual product due to manufacturer design changes or improvements.

No Performance Guarantees: While these parts are designed to enhance the performance of your vehicle, no guarantees are made regarding the specific performance gains that will be achieved.
